| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

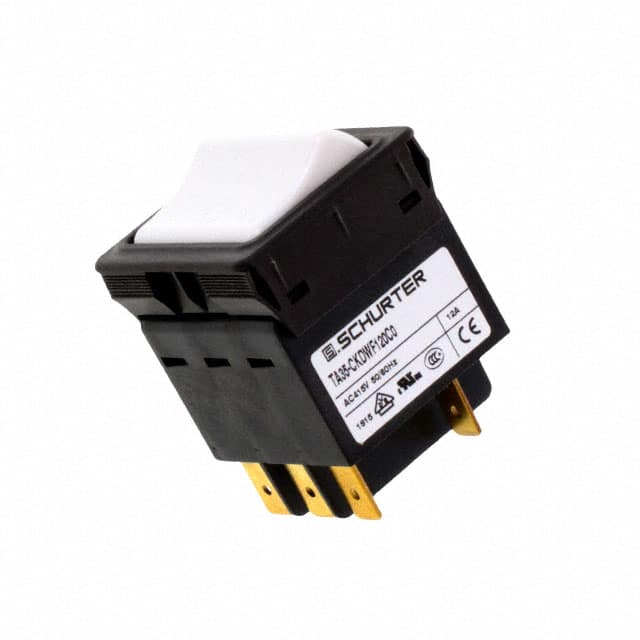

The Schurter 4435.0017 is a thermal circuit breaker designed for reliable circuit protection. This 3-pole unit offers a rated current of 12A and a voltage rating of 240VAC.
Key technical specifications include a thermal tripping type, rocker actuation, and a panel mount design. The circuit breaker has a mechanical lifetime of 50,000 switching cycles and an AC electrical lifetime of 50,000 cycles at 1x Ir. It meets IEC standards for overload trips, with a minimum of 40 trips at 6x Ir.
Environmental and safety features include an operating temperature range of -30°C to 60°C and an IP40 degree of protection on the front side. Approvals are listed from CSA, EN, GB, IEC, and UL.
This circuit breaker is suitable for various applications including power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The rated voltage is 415 Y VAC / 240 VAC.
The rated current range is 0.05 to 12 A.
It is a 3-pole circuit breaker.
It uses rocker actuation.
The allowable operation temperature is -30 °C to 60 °C.
The mechanical lifetime is 50,000 switching cycles.
