| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

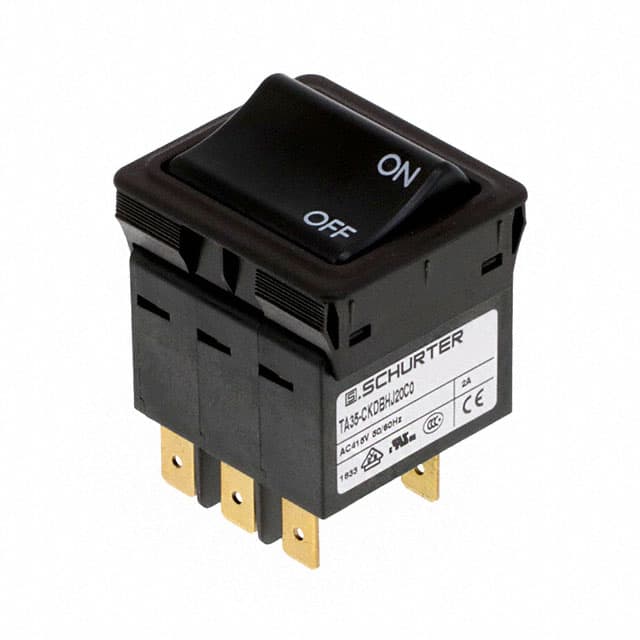

The Schurter Inc. 4435.0015 is a 3-pole thermal circuit breaker with a rocker actuation type and panel mount. It offers a rated current of 2A and a rated voltage of 240VAC.
This circuit breaker is designed for thermal tripping and has a conditional short circuit capacity of 2 kA at 415 VAC. It operates within a temperature range of -30°C to 60°C and has a mechanical lifetime of 50,000 switching cycles.
Key specifications include a dielectric strength of over 2.5 kV and an impulse dielectric strength of over 4 kV. The insulation resistance is greater than 100 MΩ at 500 VDC. The device has a degree of protection of IP40 on the front side.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The current rating is 2A.
The voltage rating is 240 VAC.
It has 3 poles.
It uses rocker actuation.
The allowable operating temperature is -30°C to 60°C.
The degree of protection on the front side is IP40.
The mechanical lifetime is 50,000 switching cycles.
