| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

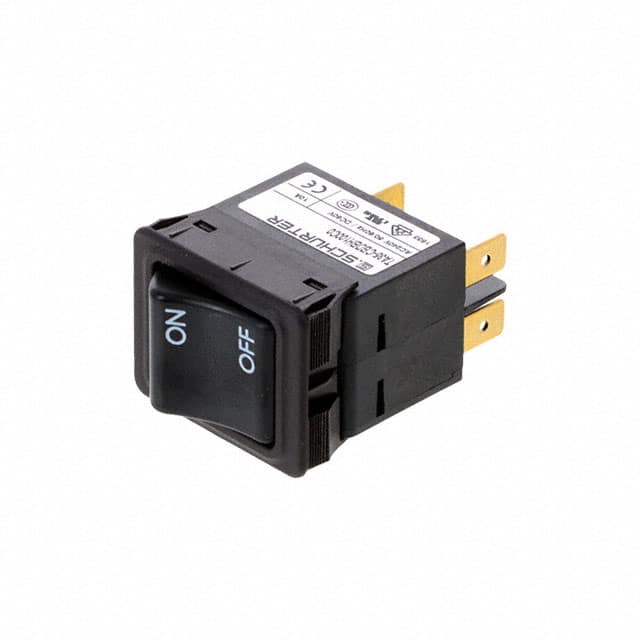

The Schurter 4435.0011 is a 2-pole thermal circuit breaker designed for equipment protection. It offers rocker actuation and a panel mount for easy integration into various systems.
This circuit breaker has a rated current of 10A and can handle AC voltages up to 240V and DC voltages up to 60V. It is designed with a thermal tripping mechanism for reliable overload protection. The device operates within a temperature range of -30°C to 60°C.
Key specifications include a conditional short circuit capacity of 2 kA at 240 VAC and an IP40 degree of protection on the front side. The mechanical lifetime is rated for 50,000 switching cycles, ensuring durability in demanding applications. It is suitable for industrial appliances, power tools, and medical equipment.
Mounting is achieved via a panel mount configuration. The circuit breaker is part of the TA35 series, offering high configurability options for specific application needs.
Rated for 240VAC (IEC), 277VAC (UL/CSA), and 60VDC.
Panel mount with bulk packaging.
-30°C to 60°C.
50,000 switching cycles.
Thermal and thermal-magnetic.
IP40 front side protection.
