| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
588 pcs
|
588 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
588 pcs
|
588 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Tensile Strength | |
| Thermal Conductivity | |
| Weight |
The Fair-Rite 443164251 is a Round Cable Snap-It™ assembly, part of the 43 Material® series, designed for effective suppression of conducted EMI from 1 MHz into the GHz region. This component is suitable for round cables or bundled wires with diameters ranging from 2.5 mm to 25.4 mm.

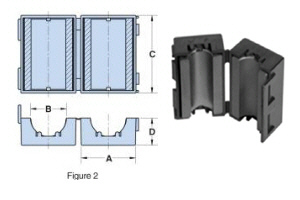

The assembly features a polypropylene case with a UL 94 V-0 flammability rating, meeting RoHS restrictions. Key mechanical dimensions include an assembly height of 18 mm, an assembly length of 32.3 mm, and an assembly width of 9 mm. The core inside diameter is a minimum of 6.3 mm.
Electrical characteristics include a typical impedance of 95 Ω at 10 MHz, increasing to 311 Ω at 250 MHz. The 43 material offers an initial permeability of 800 and is optimized for EMI suppression in the 20 MHz to 250 MHz range. This snap-it assembly is controlled for impedance values, with minimum impedance typically listed impedance less 20% for specified frequencies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Fair-Rite 443164251 Round Cable Snap-It™ can accommodate round cables or bundled wires with diameters up to 25.4 mm.
The typical impedance of the Fair-Rite 443164251 at 10 MHz is 95 Ω.
The typical impedance of the Fair-Rite 443164251 at 250 MHz is 311 Ω.
The 43 Material used in the Fair-Rite 443164251 has an initial permeability of 800 at B < 10 gauss.
The polypropylene case of the Fair-Rite 443164251 has a flammability rating of UL 94 V-0.
