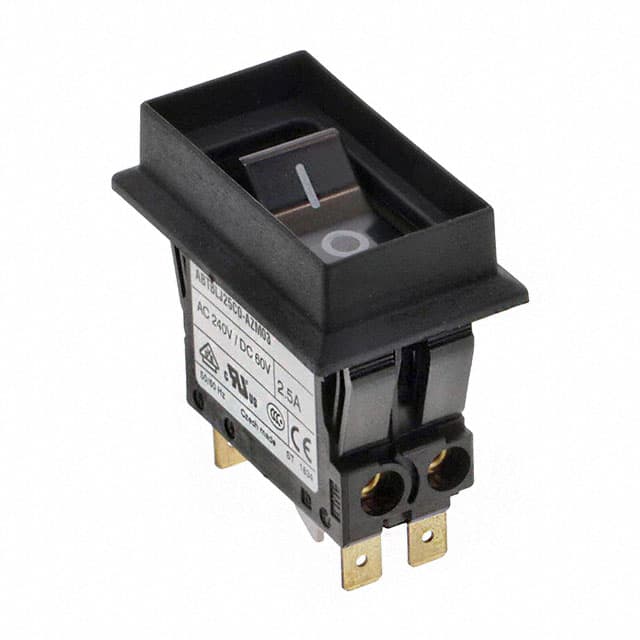

The Schurter Inc. 4430.3462 is a thermal circuit breaker designed for reliable overload protection. This 2-pole device operates at a rated voltage of 240 VAC and 60 VDC, with a current rating of 2.5A.
Key features include positively trip-free release, rocker actuation, and a panel mount design. The circuit breaker offers a conditional short circuit capacity of 1 kA at 240 VAC and a short circuit capacity of up to 300A. It has a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -10°C to 55°C.
Applications for this circuit breaker include power tools, industrial appliances, power supplies, equipment for construction, and cleaning equipment. It meets IP40 degree of protection on the front side, which can be extended to IP54 with a factory-mounted protection cover.
The current rating is 2.5A.
It is rated for 240VAC and 60VDC.
The allowable operating temperature range is -10°C to 55°C.
The degree of protection is IP40, and IP54 with a factory-mounted protection cover.
The mechanical lifetime is 50,000 switching cycles.
The dielectric strength is 4kVAC.
The tripping type is thermal.
