| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

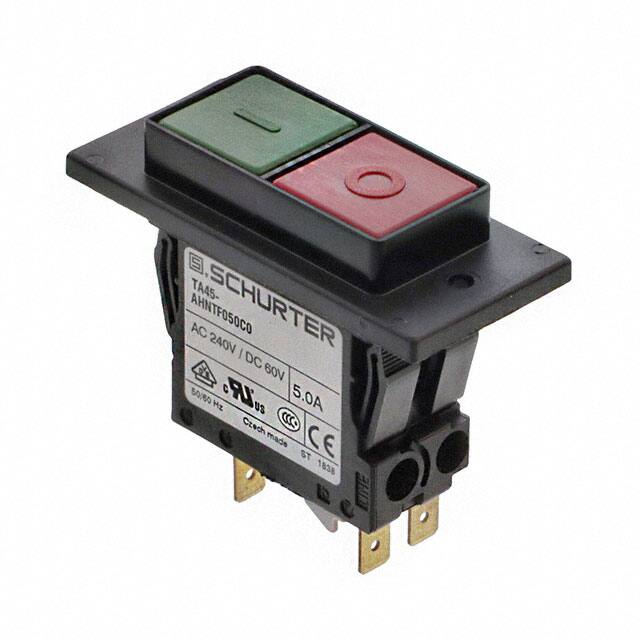

The Schurter Inc. 4430.3308 is a thermal circuit breaker from the TA45 series, designed for reliable overload protection in various applications. This 2-pole device features a rocker actuation type and is suitable for panel mounting.
Key electrical specifications include a rated AC voltage of 240 VAC and a rated DC voltage of 60 VDC. The current rating is 5A, with a rated current range AC from 0.05 to 20A. It offers a conditional short circuit capacity of 1 kA and a short circuit capacity Icn of 300A at 240 VAC.
Environmental and mechanical specifications include an operating temperature range of -10 °C to 55 °C and a mechanical lifetime of 50,000 switching cycles. The degree of protection is IP40 on the front side. The device has a weight ranging from 30g to 50g.
This circuit breaker is ideal for applications such as power tools, industrial appliances, power supplies, and equipment for construction and cleaning.
The 4430.3308 is rated for 240 VAC and 60 VDC.
The operating temperature range is -10 to 55 °C.
The 4430.3308 is packaged in bulk.
The tripping type is thermal.
The short circuit capacity Icn is 300A at 240 VAC, with a conditional capacity of 1 kA.
This circuit breaker has 2 poles.
