| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

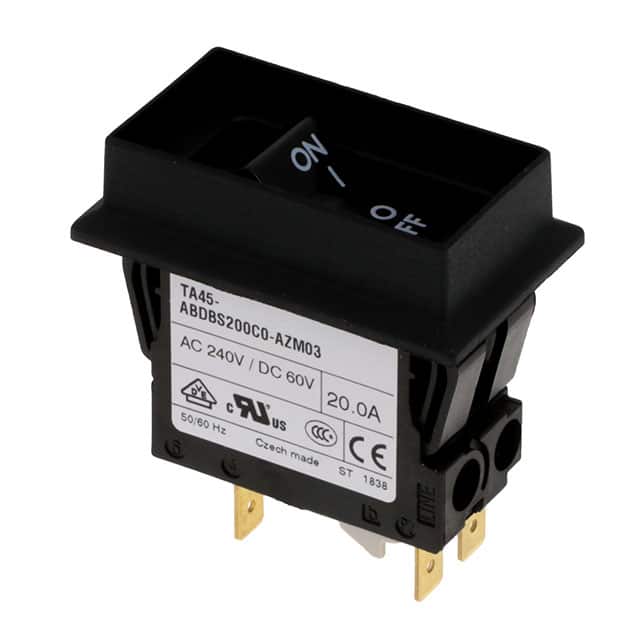

The Schurter Inc. 4430.3292 is a 2-pole thermal circuit breaker designed for equipment protection. It offers a rated voltage of 240 VAC and 60 VDC, with a current rating range of 0.05 to 20 A AC. The breaker features a thermal tripping mechanism and rocker actuation, providing reliable overload protection.
With a mechanical lifetime of 50,000 switching cycles and overload capabilities of at least 40 trips at 6x Ir for AC, this circuit breaker is built for durability. It operates within a temperature range of -10 °C to 55 °C and offers a degree of protection of IP40 on the front side.
Designed for panel mounting, the 4430.3292 is suitable for various applications including power tools, industrial appliances, power supplies, and equipment for construction and cleaning. Its robust construction and compliance with standards like IEC 60934 ensure dependable performance in demanding environments.
Rated voltage AC: 240 VAC, DC: 60 VDC.
20 A.
-10 °C to 55 °C.
Thermal.
IP40 (IP54 with optional cover).
2 poles.
50,000 switching cycles.
