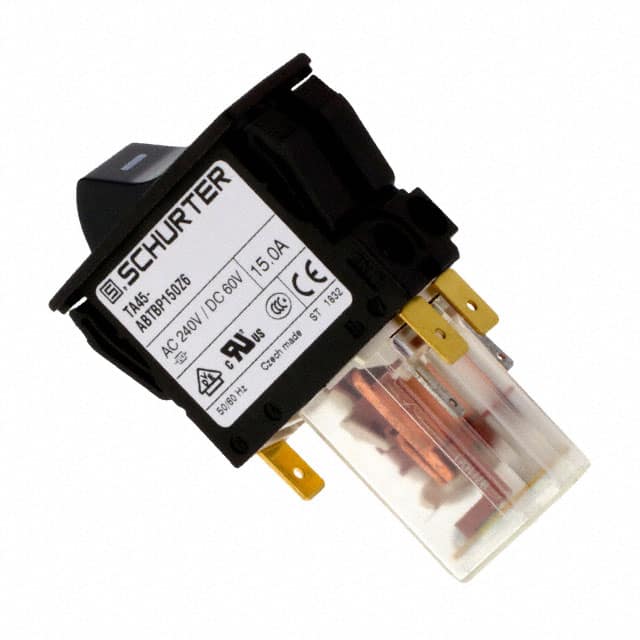

The Schurter Inc. 4430.3167 is a thermal circuit breaker from the TA45 series, designed for reliable overload protection in various equipment.
This 2-pole breaker operates with a rated voltage of 240 VAC and 60 VDC, and has a current rating range of 0.05 to 20 A, with this specific unit rated at 15A. It offers a conditional short circuit capacity of 1 kA (AC 240V) and a short circuit capacity (Icn) of 300A at 240 VAC for currents 3A or higher. The tripping type is thermal, and it features a rocker actuation.
Designed for panel mounting, the 4430.3167 has a degree of protection of IP40 on the front side, which can be increased to IP54 with a factory-mounted protection cover. Its mechanical lifetime is rated at 50,000 switching cycles. The operating temperature range is -10 °C to 55 °C.
Applications for this circuit breaker include power tools, industrial appliances, power supplies, equipment for construction, and cleaning equipment.
The rated voltage is 240 VAC and 60 VDC.
The rated current range is 0.05 - 20 A, with this specific unit being 15A.
It uses rocker actuation.
The allowable operation temperature is -10 °C to 55 °C.
The RoHS status is RoHS3 Compliant.
