| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

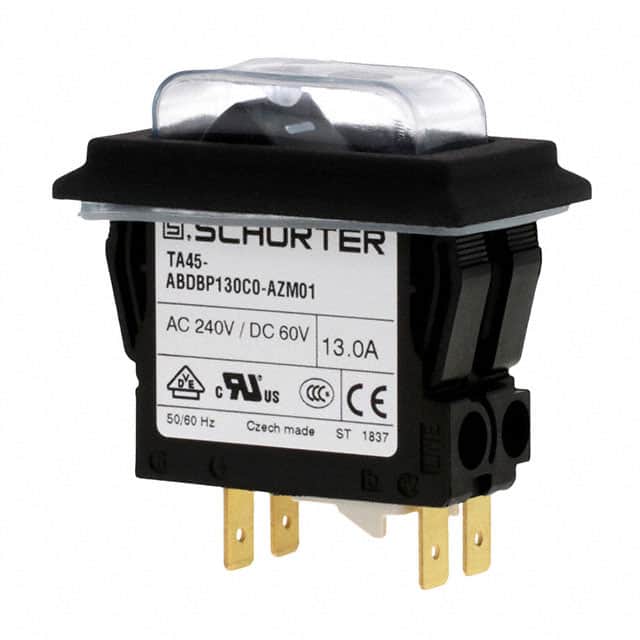

This Schurter Inc. 4430.3115 is a thermal circuit breaker designed for reliable overload protection in various applications. It is a 2-pole device with a rocker actuation type, suitable for panel mounting.
The circuit breaker has a rated voltage of 240 VAC and 60 VDC, with a current rating of 13A. It offers a conditional short circuit capacity of 1 kA at 240 VAC and a short circuit capacity of 300A at 240 VAC for currents 3A or higher. The device is rated for a minimum of 50,000 mechanical switching cycles and provides thermal tripping.
Environmental specifications include a degree of protection of IP40 on the front side. The operating temperature range is -10 °C to 55 °C. Approvals include CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077, indicating compliance with various safety standards.
The circuit breaker is rated 240 VAC and 60 VDC.
Packaging is Bulk.
The allowable operating temperature range is -10 to 55 °C.
It is approved to CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077.
The rated current is 13 Amps, with a range of 0.05 to 20 Amps.
The trip type is thermal.
It has a rocker actuator.
