| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

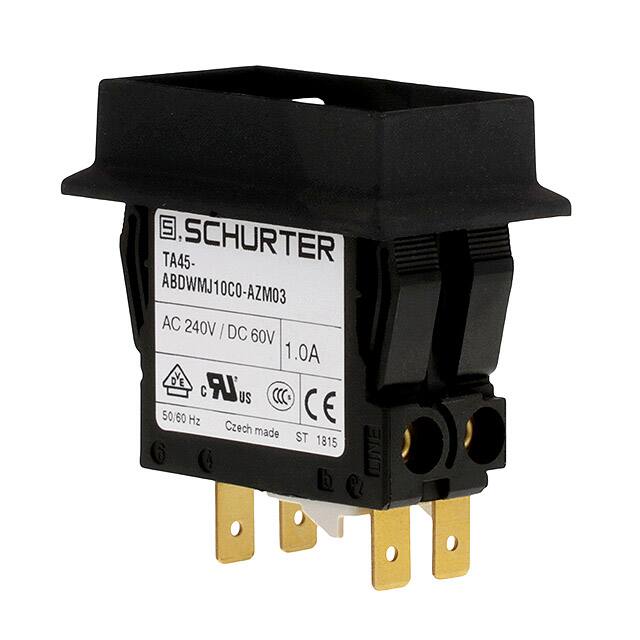

The Schurter Inc. 4430.3089 is a 2-pole thermal circuit breaker with a panel mount design. It offers a rated voltage of 240 VAC and 60 VDC, with a current rating range of 0.05 to 20 A, and specifically a 1A rating for this model.
This circuit breaker provides thermal overload protection and features a rocker actuation type. It has a conditional short circuit capacity of 1 kA and a short circuit capacity of 300A at 240 VAC. The device is rated for a dielectric strength of 4 kVAC and an insulation resistance greater than 100 MΩ at 500 VDC.
Designed for industrial applications, the 4430.3089 operates within an ambient temperature range of -10 °C to 55 °C. It meets degree of protection IP40 on the front side. The mechanical lifetime is rated for 50,000 switching cycles.
Key specifications include a 1A current rating, 240VAC voltage, 2 poles, and thermal tripping type. It is suitable for applications requiring reliable overcurrent protection in industrial appliances, power supplies, and equipment for construction.
It is rated for 240VAC and 60VDC.
-10°C to 55°C.
1A.
Thermal.
2 poles.
Panel mount.
IP40.
