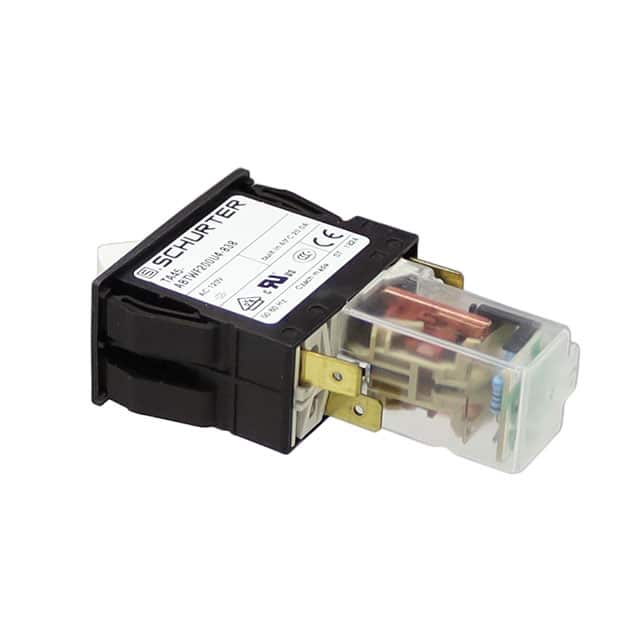

The Schurter Inc. 4430.3052 is a thermal circuit breaker designed for reliable overload protection in various applications. This 2-pole unit features a rocker actuation type and is suitable for panel mounting.
With a rated voltage of 240 VAC and 60 VDC, and a rated current range of 0.05 to 20 A, this circuit breaker offers versatile protection. It has a conditional short circuit capacity of 1 kA at 240 VAC and various Icn ratings depending on the current and voltage conditions.
The device operates within a temperature range of -10 °C to 55 °C and has a mechanical lifetime of 50,000 switching cycles. Its degree of protection is IP40 on the front side, increasing to IP54 with a factory-mounted protection cover.
Applications for this circuit breaker include power tools, industrial appliances, power supplies, equipment for construction, and cleaning equipment. It is built to meet demanding industrial environments.
Rated voltage AC is 240 VAC and rated voltage DC is 60 VDC.
Panel mount.
Allowable operation temperature is -10 to 55 °C, and storage temperature is also -10 to 55 °C.
Conditional short circuit capacity is 1 kA at 240 VAC. Additional Icn ratings vary: at In <3A/240VAC: 10xIn, at In ≥3A/240VAC: 300A, at In <3A/60VDC: 10xIn, at In ≥3A/48VDC: 120A.
50,000 switching cycles.
IP40 on the front side, and IP54 with factory-mounted protection cover.
Thermal.
