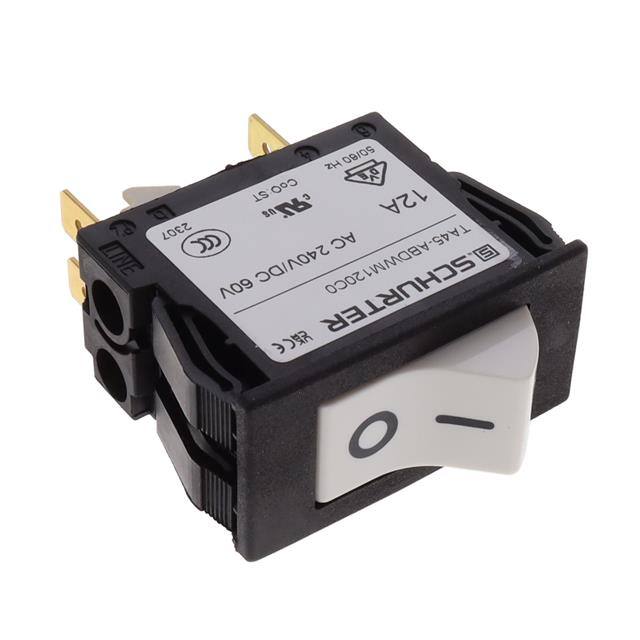

The Schurter Inc. 4430.3041 is a 2-pole thermal circuit breaker from the TA45 series. It offers thermal overload protection with a positively trip-free release mechanism. This model is rated for 12A and operates at up to 240 VAC or 60 VDC.
Designed for panel mounting, this circuit breaker features a rocker actuation type. It has a mechanical lifetime of 50,000 switching cycles and an overload capability of a minimum of 40 trips at 6x Ir for AC and 4x Ir for DC.
Key electrical specifications include a conditional short circuit capacity of 1 kA at 240 VAC and a dielectric strength of 4 kVAC. The operating temperature range is -10 °C to 55 °C.
Applications for this circuit breaker include power tools, industrial appliances, power supplies, and equipment for construction and cleaning.
The current rating is 12A.
It is rated for 240 VAC and 60 VDC.
It has 2 poles.
The actuation type is Rocker.
The allowable operation temperature is -10 °C to 55 °C.
The mechanical lifetime is 50,000 switching cycles.
The mounting type is Panel Mount.
