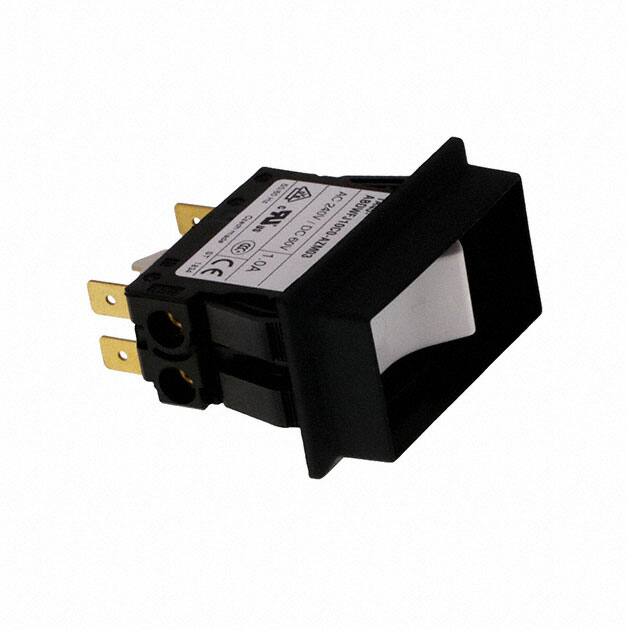

The Schurter 4430.3022 is a thermal circuit breaker for equipment, featuring a 2-pole design and rocker actuation. It offers a rated voltage of 240 VAC and 60 VDC, with a current rating range of 0.05 to 20 A, specifically rated at 1A for this model.
This circuit breaker provides thermal overload protection and has a mechanical lifetime of 50,000 switching cycles. It operates within a temperature range of -10 °C to 55 °C and has a degree of protection of IP40 on the front side.
Designed for panel mounting, the Schurter 4430.3022 is suitable for various industrial applications. Its technical specifications include a dielectric strength of 4 kVAC and an insulation resistance greater than 100 MΩ at 500 VDC.
Key features include positively trip-free release and high configurability. The device is built to withstand vibration and shock according to IEC standards.
240 VAC and 60 VDC.
1 A.
2 poles.
-10°C to 55°C.
Panel mount.
IP40.
50,000 switching cycles.
