| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

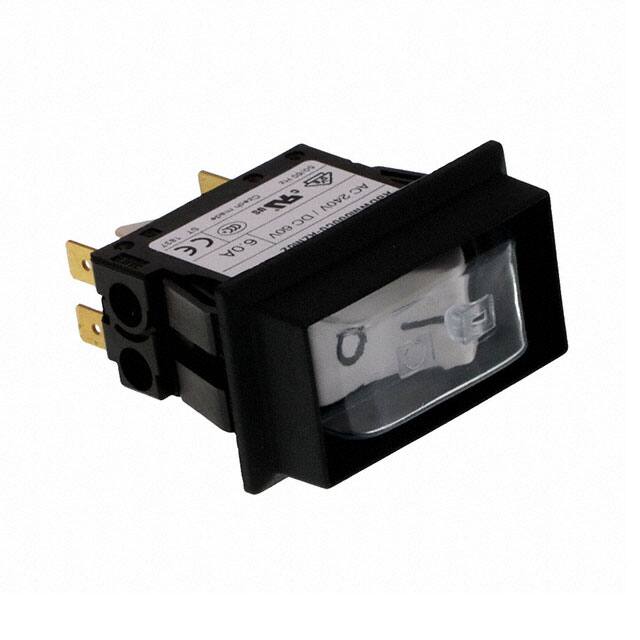

The Schurter Inc. 4430.2931 is a 2-pole thermal circuit breaker featuring rocker actuation and a panel mount design. It provides thermal overload protection with a rated current of 6A and a voltage rating of 240 VAC or 60 VDC.
Key specifications include a conditional short circuit capacity of 1 kA and a short circuit capacity of up to 300A. The device operates within a temperature range of -10 °C to 55 °C and has a mechanical lifetime of 50,000 switching cycles.
Applications for this circuit breaker include power tools, industrial appliances, power supplies, and equipment for construction and cleaning. It meets IP40 degree of protection on the front side, or IP54 with a factory-mounted protection cover.
Approvals include VDE, UL, and CCC, indicating compliance with relevant safety standards. The Schurter 4430.2931 is suitable for various industrial and equipment applications requiring reliable overcurrent protection.
The rated voltage is 240VAC and 60VDC.
The current rating is 6A.
The tripping type is thermal.
The allowable operating temperature range is -10°C to 55°C.
The degree of protection is IP40, and IP54 with the factory-mounted protection cover.
