| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

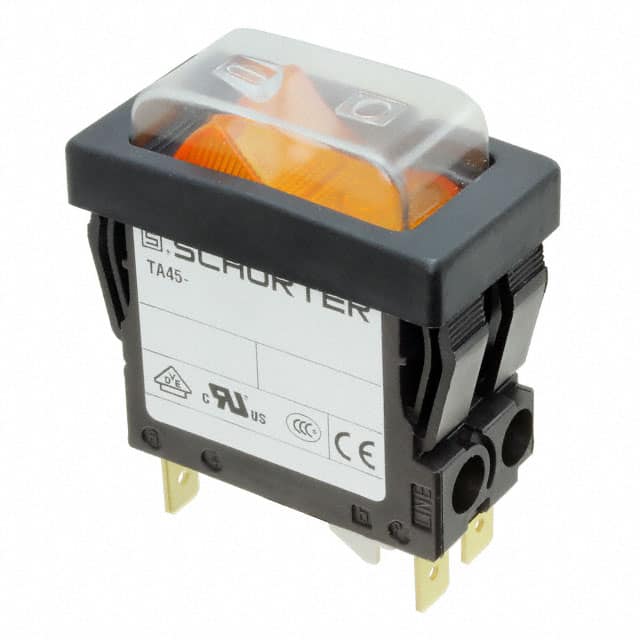

The Schurter Inc. 4430.2924 is a thermal circuit breaker with a 2-pole configuration, suitable for panel mounting. It offers a rated current of 8A and operates at AC voltages up to 240V and DC voltages up to 60V.
This circuit breaker utilizes a thermal tripping mechanism and features a rocker actuation type. It is designed for reliable overload protection in various applications. The device has a mechanical lifetime of 50,000 switching cycles and meets specific overload trip requirements for both AC and DC circuits.
Key electrical specifications include a dielectric strength of 4 kVAC and an insulation resistance greater than 100 MΩ at 500 VDC. The operating temperature range is -10 °C to 55 °C. The circuit breaker also offers a degree of protection of IP40 on the front side, which can be increased to IP54 with a factory-mounted protection cover.
Approvals include CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077, indicating compliance with various international safety standards. The illumination is orange with a nominal voltage of 220V.
The operating voltage is 240 VAC and 60 VDC.
The current rating is 8A.
The allowable operating temperature is -10°C to 55°C.
The mounting type is panel mount.
It uses a rocker actuator.
It has 2 poles.
It is approved to CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077.
