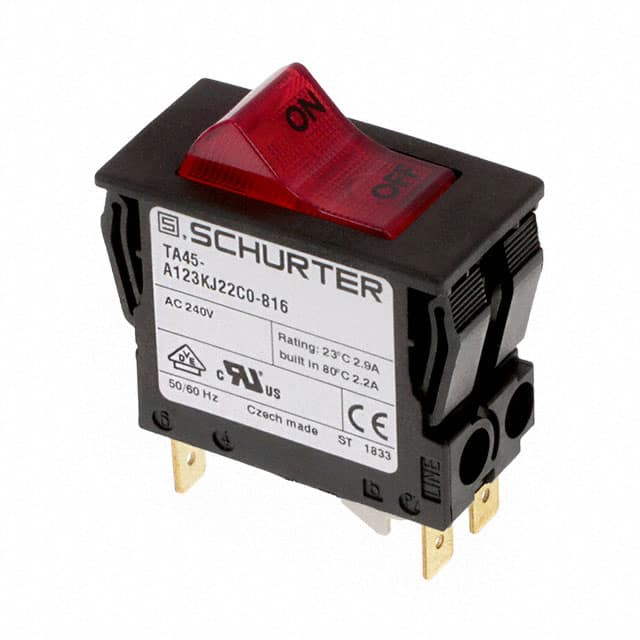

This Schurter Inc. 4430.2737 is a 2-pole thermal circuit breaker with a current rating of 2.2A and a voltage rating of 240 VAC / 60 VDC. It is designed for panel mounting and features a rocker actuation type.
The circuit breaker offers a thermal tripping mechanism and a mechanical lifetime of 50,000 switching cycles. It operates within a temperature range of -10°C to 55°C and has a weight between 30g and 50g.
Applications for this component include power tools, industrial appliances, power supplies, equipment for construction, and cleaning equipment. It meets IP40 protection standards on the front side, or IP54 with a factory-mounted protection cover.
Key electrical specifications include a conditional short circuit capacity of 1 kA at 240 VAC and various Icn ratings depending on the current and voltage conditions. It also has a dielectric strength of 4 kVAC and an insulation resistance greater than 100 MΩ at 500 VDC.
Rated 240 VAC and 60 VDC.
Rated for 2.2A continuous current.
-10°C to 55°C.
Thermal.
2-pole.
Panel mount.
IP40 on the front side, IP54 with factory protection cover.
