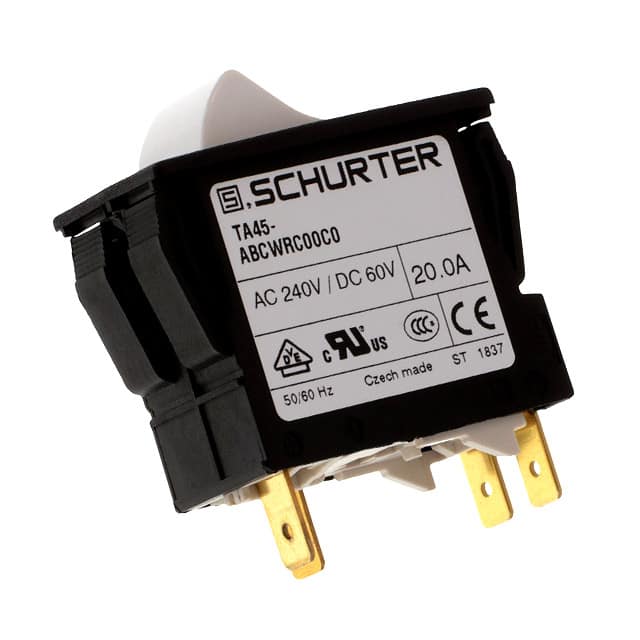

The Schurter Inc. 4430.2736 is a 2-pole thermal circuit breaker designed for equipment protection. It features a rocker actuation and a thermal tripping type, providing reliable overload protection.
This circuit breaker has a rated AC voltage of 240 VAC and a rated DC voltage of 60 VDC, with a rated current range of 0.05 to 20 A. It offers a conditional short circuit capacity of 1 kA at 240 VAC. The device is designed for a front-side degree of protection of IP40, which can be increased to IP54 with a factory-mounted protection cover.
With a mechanical lifetime of 50,000 switching cycles and electrical lifetimes of 50,000 cycles for both AC and DC, the 4430.2736 is built for durability. It operates within a temperature range of -10 °C to 55 °C. The circuit breaker utilizes quick connect terminals measuring 6.3 x 0.8 mm and has a snap-in mounting type.
Applications for this circuit breaker include power tools, industrial appliances, power supplies, equipment for construction, and cleaning equipment. It meets various approval standards, including VDE, UL, and CCC.
240VAC and 60VDC.
-10 to 55°C.
Snap-in mounting with a mounting hole of 21.5x48mm.
Thermal.
2 poles.
20A (adjustable range 0.05-20A).
300A (max. 3 cycles).
