| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating |

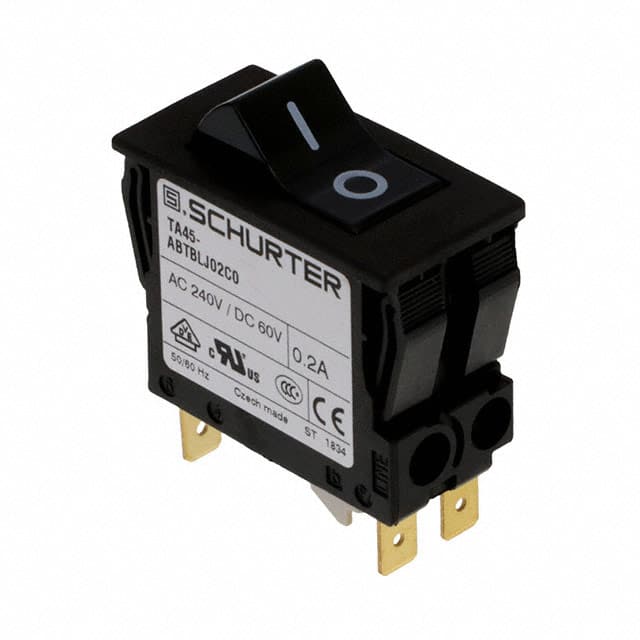

The Schurter Inc. 4430.2612 is a thermal circuit breaker designed for equipment protection. It features a 2-pole configuration and rocker actuation, offering a rated current of 200mA and a voltage rating of 240 VAC or 60 VDC.
This circuit breaker provides thermal overload protection with a positively trip-free release mechanism. It has a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -10 °C to 55 °C. The device is designed for panel mounting and offers a degree of protection of IP40 on the front side.
Applications for this component include power tools, industrial appliances, power supplies, and equipment for construction and cleaning. It meets various approval standards, including VDE, UL, and CCC.
The operating voltage is 240 VAC and 60 VDC.
-10 °C to 55 °C.
Panel mount.
200 mA (0.2 A).
Thermal.
IP40 on the front side; IP54 with factory-mounted protection cover.
4 kVAC.
