| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating |

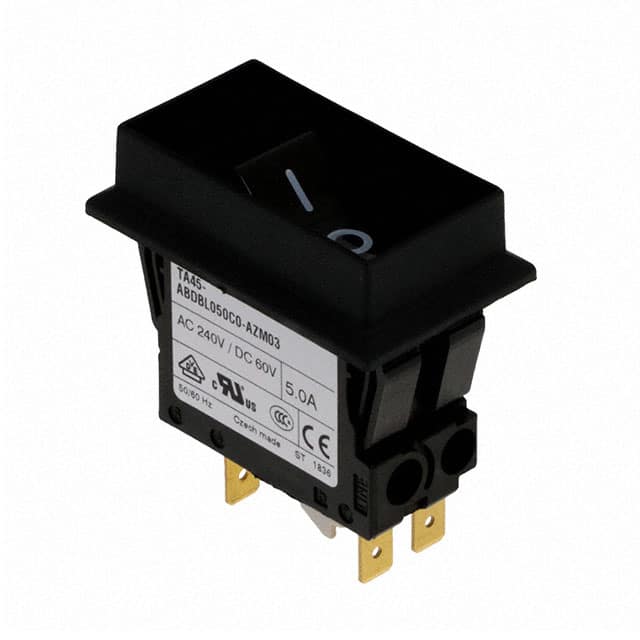

The Schurter Inc. 4430.2452 is a thermal circuit breaker featuring a 2-pole configuration and rocker actuation. It is designed for panel mounting and provides a rated current of 5A with a voltage rating of 240 VAC and 60 VDC.
This circuit breaker offers a conditional short circuit capacity of 1 kA at 240 VAC. It has a mechanical lifetime of 50,000 switching cycles and operates within a temperature range of -10°C to 55°C. The degree of protection for the front side is IP40, which can be increased to IP54 with a factory-mounted protection cover.
Key technical data includes a dielectric strength of 4 kVAC and an insulation resistance greater than 100 MΩ at 500 VDC. The device is built to withstand vibration and shock according to IEC standards.
Applications for this thermal circuit breaker include power tools, industrial appliances, power supplies, and equipment for construction and cleaning.
The rated voltage is 240 VAC and 60 VDC.
The rated current is 5A.
This is a 2-pole circuit breaker.
It uses rocker actuation.
The allowable operation temperature is from -10 °C to 55 °C.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
