| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating | |
| Weight |

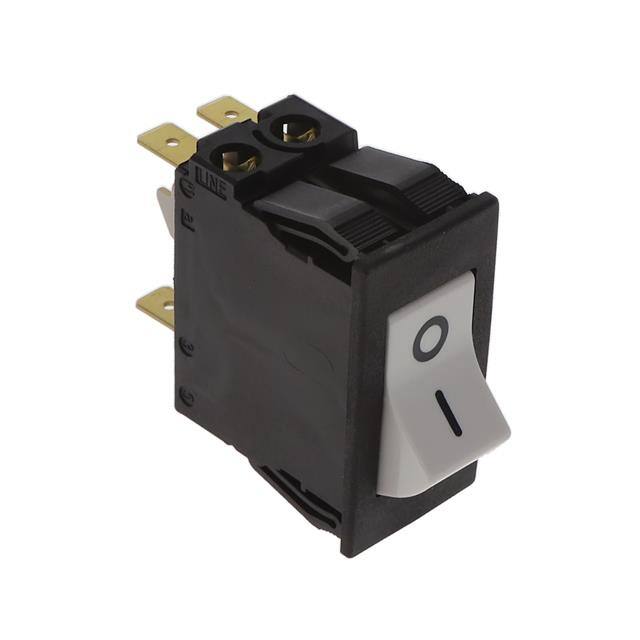

This Schurter Inc. 4430.2411 is a thermal circuit breaker featuring a 2-pole configuration and rocker actuation. It is designed for panel mounting and provides a rated current of 1A. The device supports AC voltages up to 240V and DC voltages up to 60V.
Key technical specifications include a thermal tripping type, a mechanical lifetime of 50,000 switching cycles, and an operating temperature range of -10°C to 55°C. The circuit breaker also offers a conditional short circuit capacity of 1 kA (AC 240V) and a short circuit capacity (Icn) of up to 300A.
Applications for this circuit breaker include power tools, industrial appliances, power supplies, equipment for construction, and cleaning equipment. It meets various approval standards, including CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077.
The breaker is rated for 240 VAC and 60 VDC.
The allowable operating temperature range is -10 °C to 55 °C.
The breaker is panel mounted.
It provides IP40 protection, and IP54 with a factory-mounted protection cover.
It uses a thermal tripping mechanism.
It carries CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077 approvals.
The dielectric strength is 4 kVAC.
