| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Terminal Type | |
| Voltage Rating | |
| Weight |

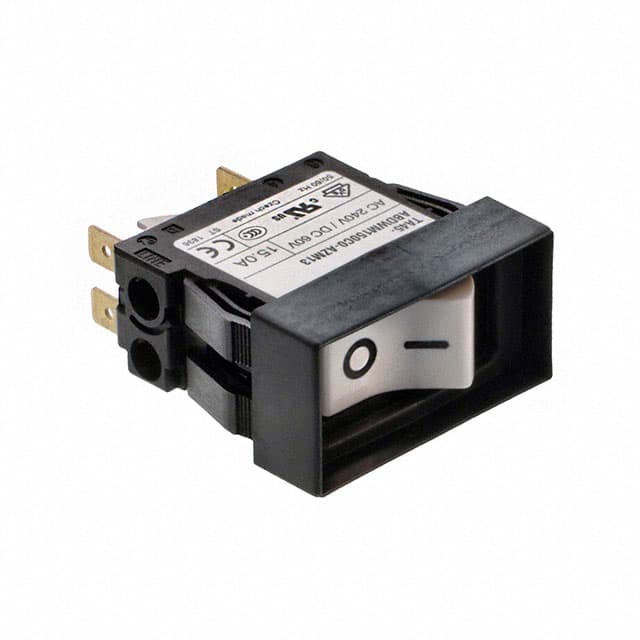

The Schurter Inc. 4430.2356 is a 2-pole thermal circuit breaker designed for reliable overload protection. It offers a rated current of 15A and can handle AC voltages up to 240V and DC voltages up to 60V.
This circuit breaker features a thermal tripping mechanism and rocker actuation for ease of use. It is designed for snap-in mounting, making installation straightforward in various equipment. The device provides a conditional short circuit capacity of 1 kA at 240 VAC and a short circuit capacity of 300A at 240 VAC for currents 3A and above.
With a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -10°C to 55°C, the 4430.2356 is suitable for demanding industrial applications. It also offers a degree of protection of IP40 on the front side.
Applications for this circuit breaker include power tools, industrial appliances, power supplies, and equipment for construction and cleaning.
240 VAC and 60 VDC.
20 pieces per cardboard package.
-10°C to 55°C.
2 poles.
Snap-in.
