| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

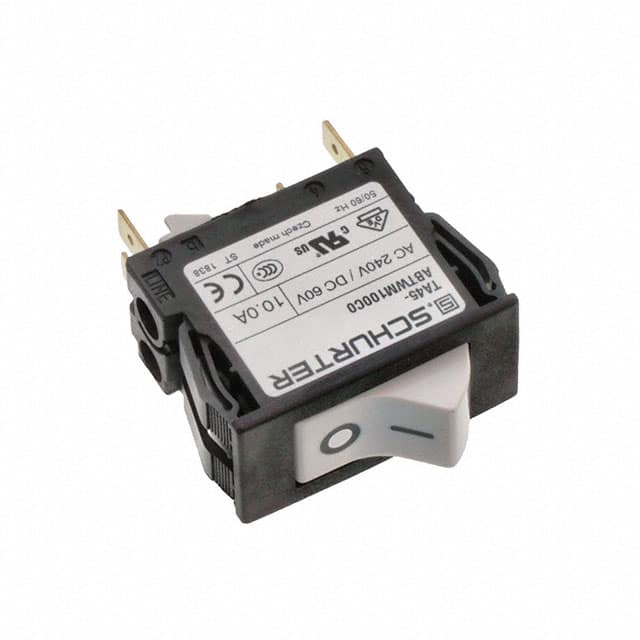

The Schurter Inc. 4430.2319 is a thermal circuit breaker from the TA45 series, offering reliable overload protection for equipment. This 2-pole breaker is designed for panel mounting and features a convenient rocker actuation.
Key electrical specifications include a rated AC voltage of 240 VAC and a rated DC voltage of 60 VDC, with a rated current range of 0.05 to 20 A. The breaker provides a conditional short circuit capacity of 1 kA at 240 VAC. It is built for durability with a mechanical lifetime of 50,000 switching cycles.
Environmental considerations include a degree of protection of IP40 on the front side. The operating temperature range is -10 °C to 55 °C. This component is suitable for various industrial applications requiring robust circuit protection.
With its thermal tripping mechanism and durable construction, the 4430.2319 is a dependable choice for protecting power tools, industrial appliances, and other sensitive equipment.
Rated voltage AC 240 V and DC 60 V.
The part is packaged in bulk.
-10 to 55°C.
Thermal.
2 poles.
Panel mount.
IP40 on the front; IP54 with factory mounted protection cover.
