| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

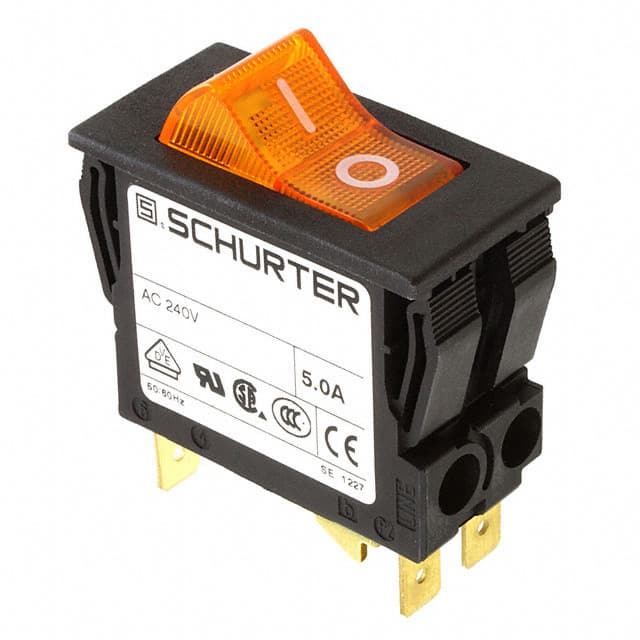

The Schurter Inc. 4430.2299 is a thermal circuit breaker designed for reliable overload protection in various applications. This 2-pole device features a rocker actuation for easy operation and a panel mount design for convenient integration into equipment.
Key electrical specifications include a rated voltage of 240 VAC and 60 VDC, with a rated current range of 0.05 to 20 A. The breaker offers a conditional short circuit capacity of 1 kA at 240 VAC. It is built for durability with a mechanical lifetime of 50,000 switching cycles.
Environmental and mechanical considerations include a degree of protection of IP40 on the front side, which can be increased to IP54 with a factory-mounted protection cover. The operating temperature range is -10 °C to 55 °C. The device has undergone vibration and shock resistance testing according to IEC standards.
Applications for this circuit breaker include power tools, industrial appliances, power supplies, and equipment for construction and cleaning. Its robust design and thermal tripping mechanism ensure safety and operational continuity.
The operating voltage is 240 VAC and 60 VDC.
The allowable operating temperature range is -10 to 55 °C.
It is panel mount.
It is approved to CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077.
The tripping type is thermal.
The actuation type is rocker.
It has 2 poles.
