| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

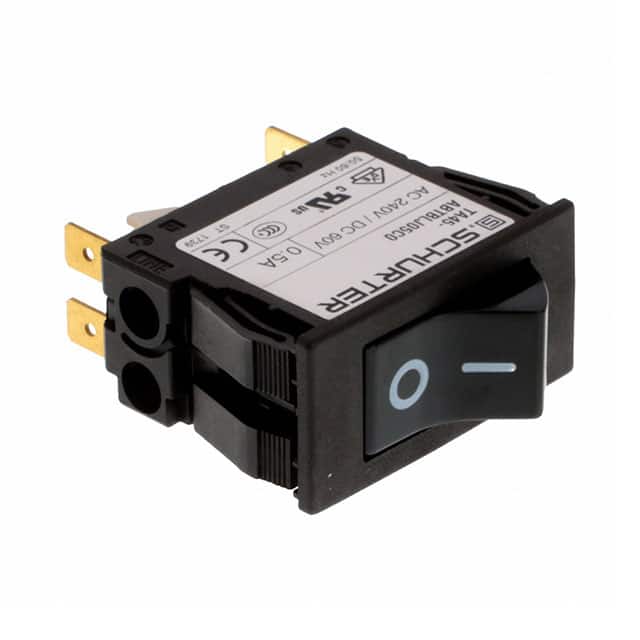

The Schurter Inc. 4430.2283 is a 2-pole thermal circuit breaker featuring rocker actuation and panel mount capability. It provides thermal overload protection with a rated voltage of 240 VAC and 60 VDC, and a current range of 0.05 to 20 A, specifically rated at 500mA for this model.
This circuit breaker is built for durability, with a mechanical lifetime of 50,000 switching cycles and overload capabilities specified for both AC and DC. It operates within a temperature range of -10 °C to 55 °C and offers a degree of protection of IP40 on the front side.
Applications for this thermal circuit breaker include power tools, industrial appliances, power supplies, equipment for construction, and cleaning equipment. Its robust design and thermal tripping mechanism ensure reliable protection in demanding environments.
Rated for 240 VAC and 60 VDC.
-10 to 55 °C.
Panel mount.
2 poles.
Icn: 300A at 240VAC for In≥3A; Inc: 1 kA (PC1).
IP40, IP54 with optional cover.
