| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Terminal Size | |
| Terminal Type | |
| Voltage Rating | |
| Weight |

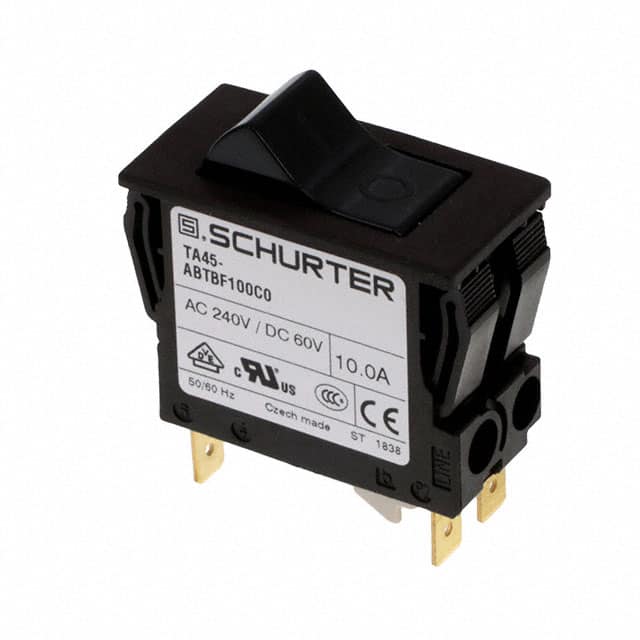

The Schurter Inc. 4430.2085 is a 2-pole thermal circuit breaker designed for reliable overload protection. It offers a rated current of 10A and a maximum AC voltage rating of 240 VAC, with a DC rating of 60 VDC.
This circuit breaker features a positively trip-free release mechanism and rocker actuation for user-friendly operation. It is suitable for panel mounting and includes quick connect terminals for easy installation. The device provides a degree of protection of IP40 on the front side.
Key specifications include a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -10 °C to 55 °C. The Schurter 4430.2085 is built for demanding applications such as power tools, industrial appliances, power supplies, and equipment for construction and cleaning.
Approvals include VDE, UL, and CCC, certifying compliance with relevant safety standards. This component is designed for industrial environments and offers high configurability for various system requirements.
The operating voltage rating is 240 VAC and 60 VDC.
It is panel mount with quick connect terminals sized 6.3 x 0.8 mm.
The allowable operating temperature is -10°C to 55°C.
The dielectric strength is 4 kVAC.
The mechanical lifetime is 50,000 switching cycles.
The degree of protection is IP40, and IP54 with the factory-mounted protection cover.
The tripping type is thermal.
