| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

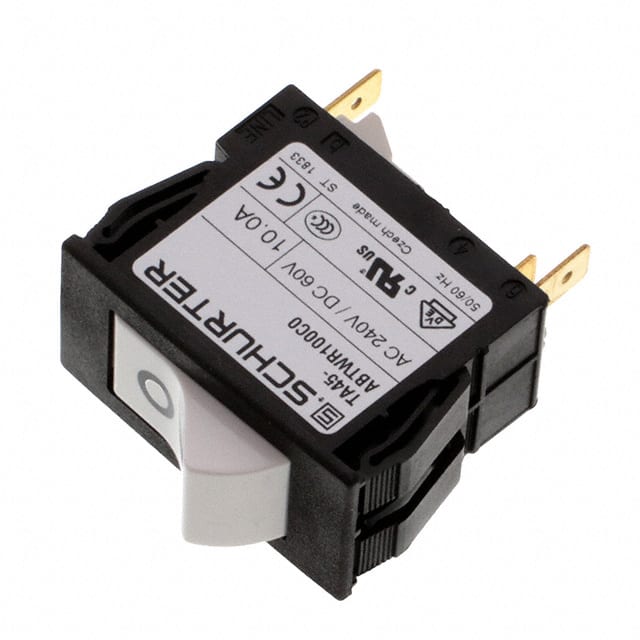

The Schurter Inc. 4430.2039 is a thermal magnetic circuit breaker designed for reliable overload protection. This 2-pole device offers a current rating of 10A and a voltage rating of 240VAC, with a DC voltage rating of 60VDC.
It features a rocker actuation type and a panel mount design, making it suitable for integration into various industrial appliances and power supplies. The circuit breaker provides a degree of protection of IP40 on the front side.
Key electrical specifications include a conditional short circuit capacity of 1 kA and a short circuit capacity of 300A at 240VAC. The device has a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -10°C to 55°C.
The circuit breaker is rated for 240VAC and 60VDC.
The 4430.2039 is available in panel mount and DIN rail mount configurations and comes in bulk packaging.
The allowable operating temperature is -10°C to 55°C.
The dielectric strength is 4 kVAC.
The mechanical life is 50,000 switching cycles.
It can withstand a minimum of 40 trips at 6 times the rated current for AC and 4 times for DC.
The standard protection is IP40. With the factory-mounted protection cover, it achieves IP54.
