| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

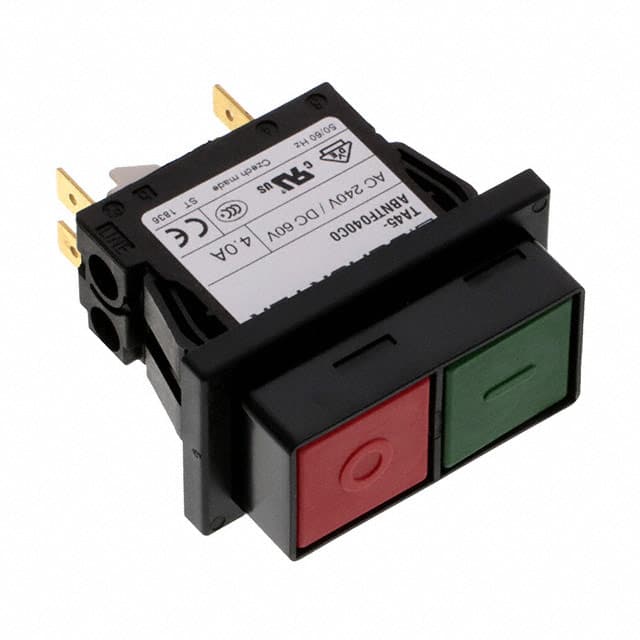

This Schurter Inc. 4430.1735 is a 2-pole thermal circuit breaker, suitable for panel mounting applications. It provides thermal overload protection with a rated current of 4A and a maximum AC voltage rating of 240 VAC, and a DC voltage rating of 60 VDC.
The circuit breaker features a rocker actuation type and a thermal tripping mechanism. It has a mechanical lifetime of 50,000 switching cycles and an overload capacity of a minimum of 40 trips at 6 times the rated current for AC and 4 times for DC.
Environmental specifications include a front-side degree of protection of IP40, which can be increased to IP54 with a factory-mounted protection cover. The operating temperature range is -10 °C to 55 °C.
Applications for this type of circuit breaker include power tools, industrial appliances, power supplies, equipment for construction, and cleaning equipment.
The rated voltage is 240VAC and 60VDC.
It is panel mounted.
The allowable operating temperature is -10°C to 55°C.
The tripping type is thermal.
It has 2 poles.
The short circuit capacity Icn is 300A (max 3 cycles) at 240VAC for In ≥ 3A.
The dielectric strength is 4kVAC.
