| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

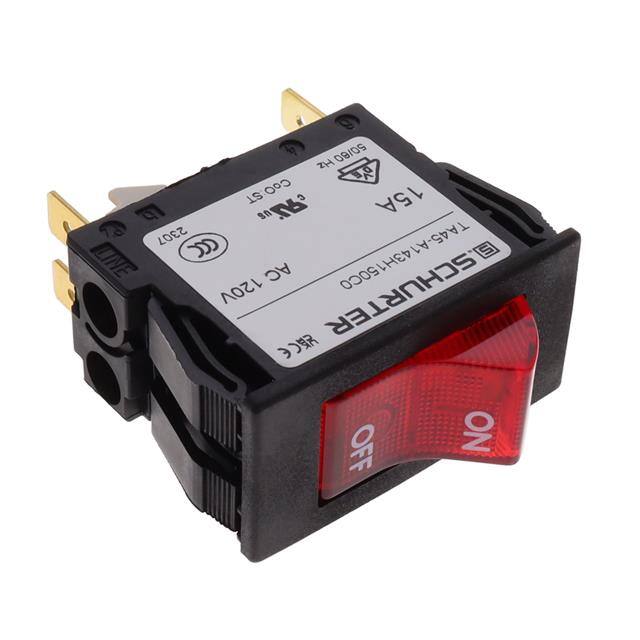

The Schurter Inc. 4430.1634 is a thermal circuit breaker featuring a 2-pole configuration and rocker actuation. It is designed for panel mounting and rated for 15A current and 240VAC / 60VDC.
Key technical specifications include a conditional short circuit capacity of 1 kA AC and a short circuit capacity of 300A AC. The breaker operates within a temperature range of -10°C to 55°C and has a mechanical lifetime of 50,000 switching cycles.
This circuit breaker is suitable for various applications including power tools, industrial appliances, power supplies, and equipment for construction. It meets approval standards such as CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077.
Rated for 240 VAC and 60 VDC operation.
-10°C to 55°C.
2 poles.
Rocker actuator.
Yes, red illumination at 110V nominal.
Panel mount.
CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, UL1077.
