| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

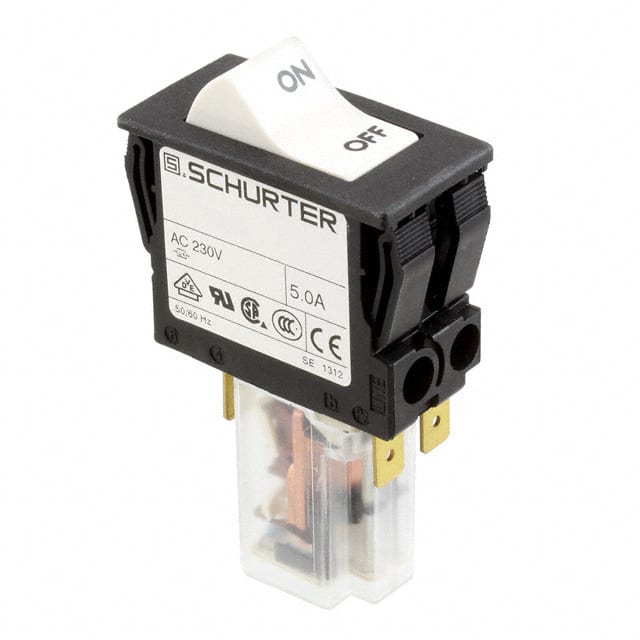

The Schurter Inc. 4430.1564 is a thermal circuit breaker with a 5A current rating and a 240VAC voltage rating. This two-pole breaker is designed for panel mounting and features a rocker actuator.
Key electrical specifications include a 5A current rating and a 240V voltage rating. The breaker type is thermal, and it has two poles. It is approved by CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077.
The mounting type is panel mount, and the actuator type is rocker. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited. The REACH status is REACH Unaffected.
This component is suitable for applications requiring reliable overcurrent protection in a panel-mounted configuration.
5A.
240VAC and 60VDC.
2 poles.
Thermal circuit breaker.
Rocker actuator.
Panel mount.
CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, UL1077.
