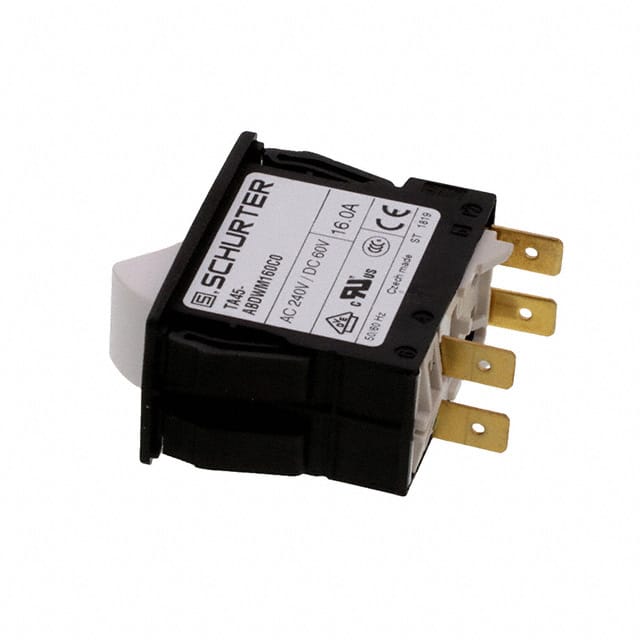

The Schurter Inc. 4430.1563 is a thermal circuit breaker designed for reliable overload protection. This 2-pole unit offers a rated current of 16A and a voltage rating of 240VAC, with a DC rating of 60VDC.
Featuring a rocker actuation type and panel mount design, this circuit breaker is suitable for various industrial applications. It provides a conditional short circuit capacity of 1 kA at 240VAC and a short circuit capacity of up to 300A.
The device operates within a temperature range of -10°C to 55°C and has a mechanical lifetime of 50,000 switching cycles. Its degree of protection is IP40 on the front side, increasing to IP54 with a factory-mounted protection cover.
Applications include power tools, industrial appliances, power supplies, and equipment for construction and cleaning.
The circuit breaker is rated for 240 VAC and 60 VDC.
-10 °C to 55 °C.
16A.
2 poles.
Rocker actuator.
Panel mount.
IP40 standard, IP54 with optional protection cover.
