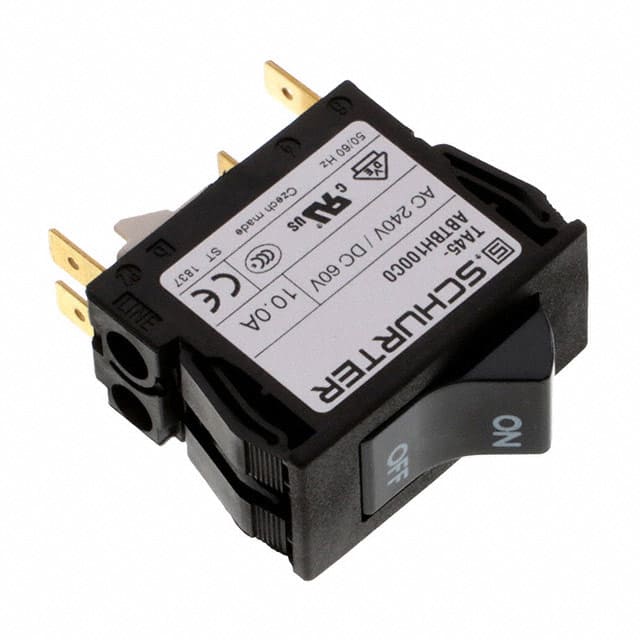

The Schurter Inc. 4430.1477 is a 2-pole thermal circuit breaker with a panel mount design and rocker actuation. It offers a rated voltage of 240 VAC and 60 VDC, with a current rating range of 0.05 to 20 A. This circuit breaker is built for thermal overload protection and features a positively trip-free release mechanism.
Key technical specifications include a conditional short circuit capacity of 1 kA at 240 VAC and various Icn ratings depending on the current and voltage conditions. The device has a degree of protection of IP40 on the front side, which can be increased to IP54 with a factory-mounted protection cover. It boasts a mechanical lifetime of 50,000 switching cycles and electrical lifetimes of 50,000 cycles at 1x Ir for both AC and DC.
Environmental specifications include an operating temperature range of -10 °C to 55 °C and a storage temperature range of -10 °C to 55 °C. The circuit breaker also exhibits resistance to vibration and shock according to IEC standards. It is designed for applications such as power tools, industrial appliances, power supplies, and equipment for construction and cleaning.
Compliance data indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though these are noted with low confidence due to lack of verification. The part number 486-5100-ND is also associated with this Schurter Inc. component.
It is rated for 240 VAC and 60 VDC.
-10 °C to 55 °C.
10 A.
Thermal.
2 poles.
Panel mount.
