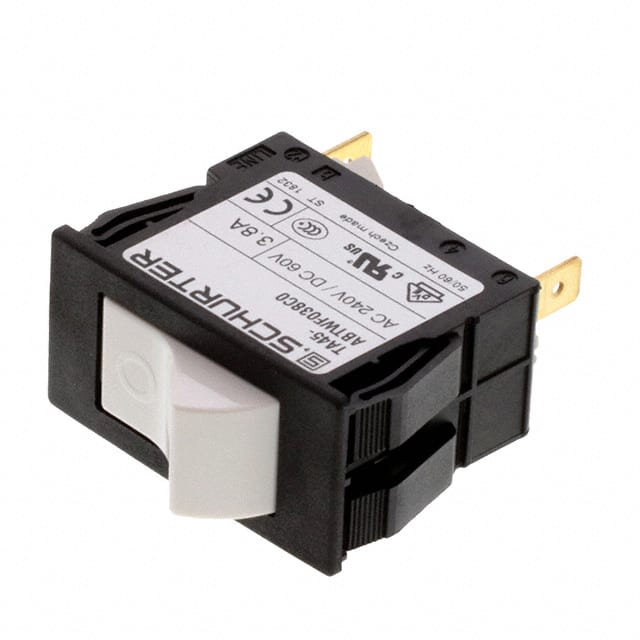

The Schurter Inc. 4430.1472 is a thermal circuit breaker designed for reliable overload protection in various applications. This 2-pole device offers a current rating of 3.8A and is suitable for circuits operating at up to 240VAC or 60VDC.
Featuring a rocker actuation type, the 4430.1472 is designed for panel mounting, ensuring easy integration into control panels and equipment. Its thermal tripping mechanism provides dependable protection against overcurrent conditions.
Key specifications include a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -10°C to 55°C. The circuit breaker also meets specific approval standards, including CSA and UL certifications, making it suitable for a wide range of industrial and commercial applications.
The operating voltage is 240VAC and 60VDC.
-10°C to 55°C.
3.8A.
IP40 front side per IEC 60529.
50,000 mechanical and electrical switching cycles at rated current.
Panel mount with rocker actuator.
CSA C22.2 No 14, CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, UL1077, UL508.
