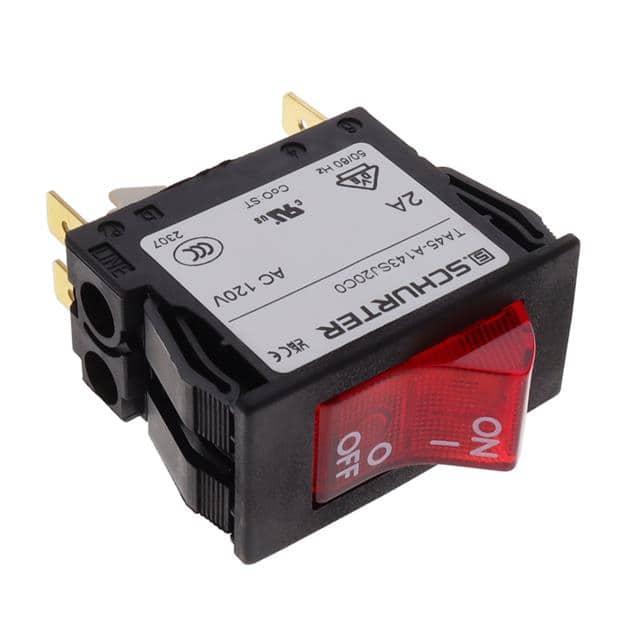

The Schurter Inc. 4430.1365 is a thermal circuit breaker designed for reliable overload protection. This 2-pole device operates at a rated voltage of 240 VAC and 60 VDC, with a current rating range of 0.05 to 20 A. It features a thermal tripping mechanism and a rocker actuator for manual operation.
Designed for panel mounting, this circuit breaker offers a degree of protection of IP40 on the front side. It has a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -10 °C to 55 °C. The breaker is suitable for applications requiring robust protection in industrial appliances, power supplies, and power tools.
Key specifications include a dielectric strength of 4 kVAC and an insulation resistance greater than 100 MΩ at 500 VDC. The unit also includes a red illumination feature with a nominal voltage of 110V, adding visual indication capabilities. Approvals include CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077.
The 4430.1365 is rated for 240 VAC and 60 VDC.
The allowable operating temperature is -10 to 55 °C.
The circuit breaker is panel mounted.
The rated current is 2 A.
The tripping type is thermal.
Yes, it has a red illumination at 110 V.
It is approved to CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077.
