| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

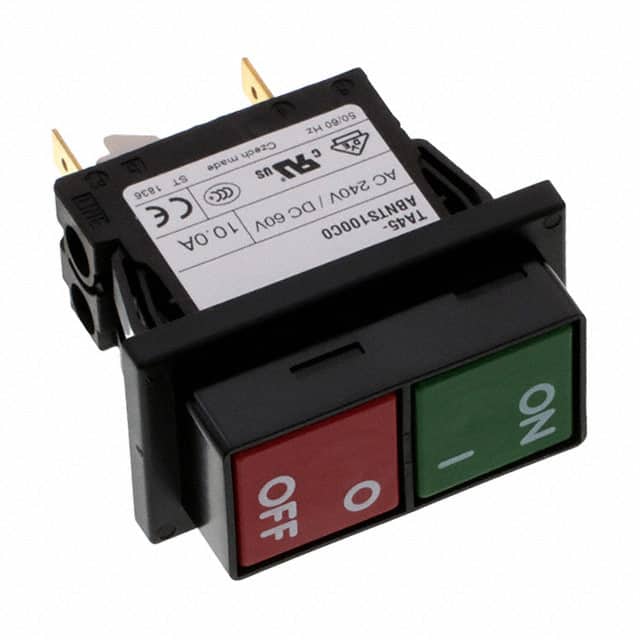

This Schurter Inc. 4430.1362 is a thermal circuit breaker from the TA45 series, designed for reliable overload protection in various applications. It offers a 2-pole configuration with a pushbutton actuator for easy operation and a panel mount design for integration into equipment.
The circuit breaker is rated for 240 VAC and 60 VDC, with a current rating of 10A. It provides a conditional short circuit capacity of 1 kA and a short circuit capacity of up to 300A. The device operates within a temperature range of -10°C to 55°C and has a mechanical lifetime of 50,000 switching cycles.
Key specifications include a degree of protection of IP40, dielectric strength of 4 kVAC, and insulation resistance greater than 100 MΩ. The thermal tripping mechanism ensures positive trip-free release, making it suitable for industrial appliances, power tools, and construction equipment.
The Schurter 4430.1362 is rated for 240 VAC and 60 VDC.
The circuit breaker has a current rating of 10A.
The allowable operating temperature range is -10°C to 55°C.
The circuit breaker is available with a rocker or pushbutton actuator.
The degree of protection is IP40 according to IEC 60529.
The circuit breaker has 2 poles.
The mounting type is panel mount.
