| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

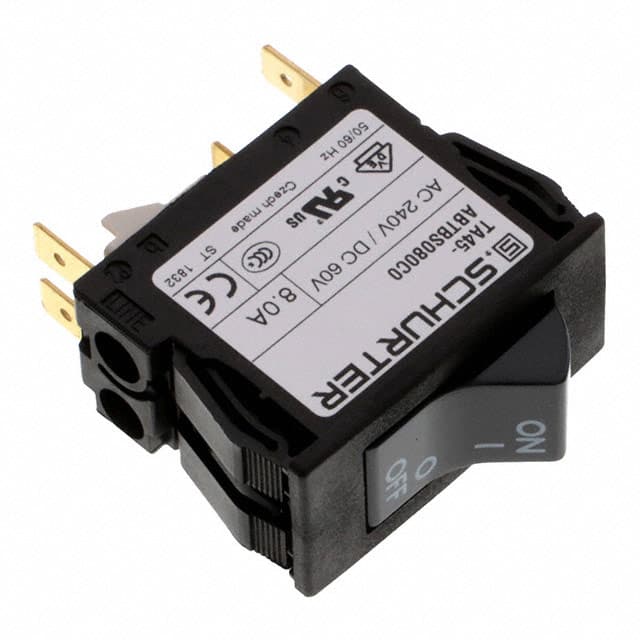

The Schurter Inc. 4430.1359 is a 2-pole thermal circuit breaker featuring rocker actuation and panel mount capability. It is designed for reliable thermal overload protection in various applications.
Key electrical specifications include a rated AC voltage of 240 VAC and a rated DC voltage of 60 VDC, with a current rating range of 0.05 to 20 A. The breaker has a conditional short circuit capacity of 1 kA AC and an Icn of 300A AC. It boasts a mechanical lifetime of 50,000 switching cycles and electrical lifetimes of 50,000 cycles for both AC and DC operations.
Environmental considerations include a degree of protection of IP40 on the front side, which can be increased to IP54 with a factory-mounted protection cover. The operating temperature range is -10 °C to 55 °C, with a similar storage temperature range. Mechanical robustness is supported by vibration resistance up to 10 G and shock resistance of 30 G / 18 ms.
This circuit breaker is suitable for applications such as power tools, industrial appliances, power supplies, equipment for construction, and cleaning equipment. It is compliant with RoHS3 standards.
The rated voltage is 240 VAC and 60 VDC.
The current rating is 8A.
It uses rocker actuation.
It has 2 poles.
The allowable operation temperature is -10 °C to 55 °C.
Yes, it is RoHS3 compliant.
