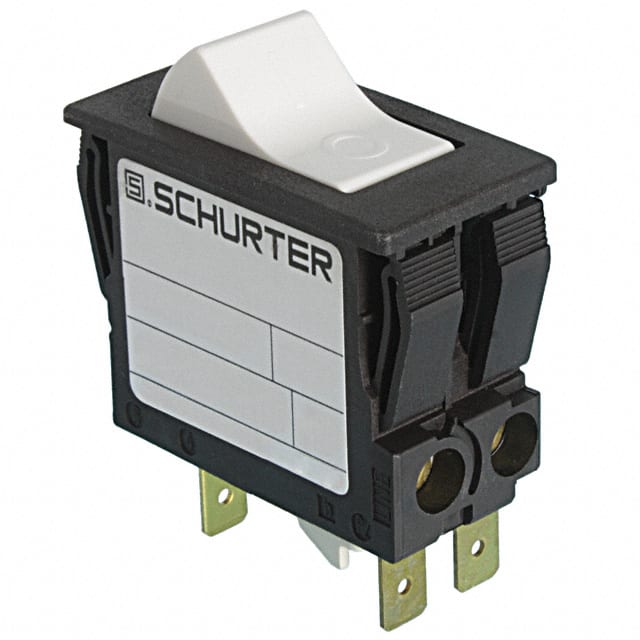

The Schurter Inc. 4430.1351 is a thermal circuit breaker featuring a 2-pole configuration and a rocker actuation type. It is designed for panel mounting and has a current rating of 7.5A, with a rated voltage of 240 VAC and 60 VDC.
This circuit breaker provides thermal overload protection and has a conditional short circuit capacity of 1 kA at 240 VAC. It meets various approval standards including CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077. The operating temperature range is -10 °C to 55 °C.
Key technical data includes a dielectric strength of 4 kVAC and an insulation resistance greater than 100 MΩ at 500 VDC. Mechanical lifetime is rated at 50,000 switching cycles. The degree of protection for the front side is IP40.
Applications for this type of circuit breaker include power tools, industrial appliances, power supplies, and equipment for construction and cleaning.
The current rating is 7.5A.
It has a rated voltage of 240 VAC and 60 VDC.
This circuit breaker has 2 poles.
The allowable operation temperature is -10 °C to 55 °C.
It uses a rocker actuation type.
