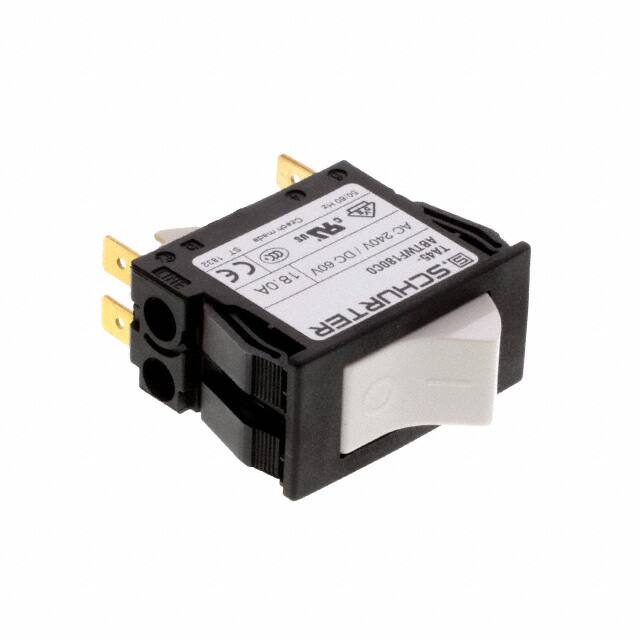

This Schurter Inc. 4430.1096 is a thermal circuit breaker with a 2-pole configuration, suitable for various industrial applications. It offers a current rating of 18A and a voltage rating of 240VAC, with a DC voltage rating of 60VDC.
The breaker features a rocker actuation type and is designed for panel mounting. It provides thermal overload protection with a positively trip-free release mechanism. The device operates within an allowable temperature range of -10°C to 55°C.
Key technical specifications include a conditional short circuit capacity of 1 kA at 240VAC and a short circuit capacity (Icn) of 300A at 240VAC for currents 3A and above. It has a mechanical lifetime of 50,000 switching cycles and an overload capability of at least 40 trips at 6 times the rated current for AC.
Environmental specifications include a degree of protection of IP40 on the front side, which can be increased to IP54 with a factory-mounted protection cover. The dielectric strength is 4 kVAC, and insulation resistance is greater than 100 MΩ at 500 VDC.
Rated 240 VAC and 60 VDC.
-10 to 55 °C.
Thermal.
Panel mount.
IP40 standard, IP54 with factory mounted cover.
18 A.
50,000 switching cycles.
