| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Rated Current | |
| Storage Temperature | |
| Terminal Type | |
| Voltage Rating | |
| Weight |

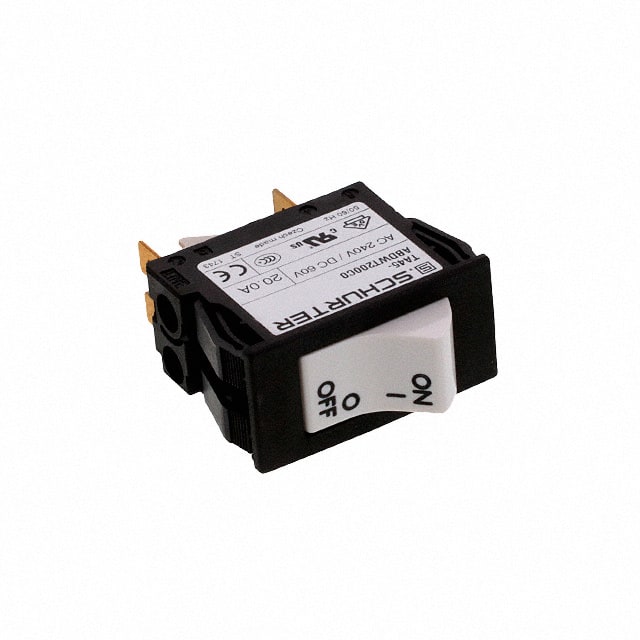

The Schurter Inc. 4430.1067 is a thermal circuit breaker designed for equipment protection. It offers 2-pole thermal overload protection with a positively trip-free release mechanism.
Key electrical specifications include a rated AC voltage of 240 VAC and a rated DC voltage of 60 VDC. The rated current is 20A, with a rated current range of 0.05 - 20 A AC. It has a conditional short circuit capacity of 1 kA at AC 240V.
This circuit breaker features a rocker actuation type and snap-in mounting for easy installation. The terminals are 6.3 x 0.8 mm quick connect type. The operating temperature range is -10 °C to 55 °C.
Applications for this thermal circuit breaker include power tools, industrial appliances, power supplies, equipment for construction, and cleaning equipment.
Rated 240VAC and 60VDC.
-10°C to 55°C.
Cardboard box of 20 pieces.
20A.
Thermal.
Rocker.
Snap-in mounting with a 21.5x48mm cutout.
