| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuator Type | |
| Approval Agency | |
| Automotive Grade | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Industrial Grade | |
| Insulation Resistance | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

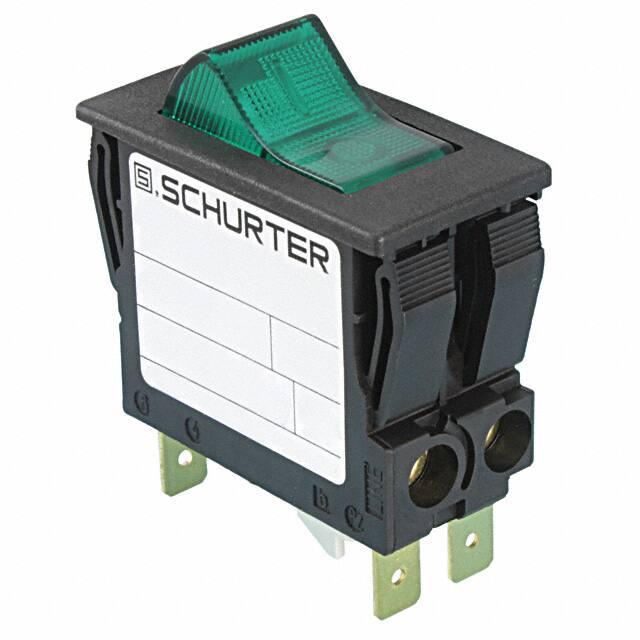

The Schurter Inc. 4430.0982 is a 2-pole thermal circuit breaker designed for reliable overload protection. It offers a rated voltage of 240 VAC and 60 VDC, with a current range of 0.05 to 20 A.
This circuit breaker features a thermal tripping mechanism and rocker actuation. It has a mechanical lifetime of 50,000 switching cycles and an overload capability of a minimum of 40 trips at 6 times the rated current for AC. The device provides a degree of protection of IP40 on the front side, which can be increased to IP54 with a factory-mounted protection cover.
Applications for this circuit breaker include power tools, industrial appliances, power supplies, equipment for construction, and cleaning equipment. It is built to withstand vibration and shock according to IEC standards, ensuring durability in demanding environments. The mounting type is panel mount, making it suitable for integration into various equipment designs.
The rated voltage is 240 VAC and 60 VDC.
-10 °C to 55 °C.
Rocker actuation.
2 poles.
IP40 per IEC 60529.
Yes, a green illumination indicator rated for 110V.
CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, UL1077.
