| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

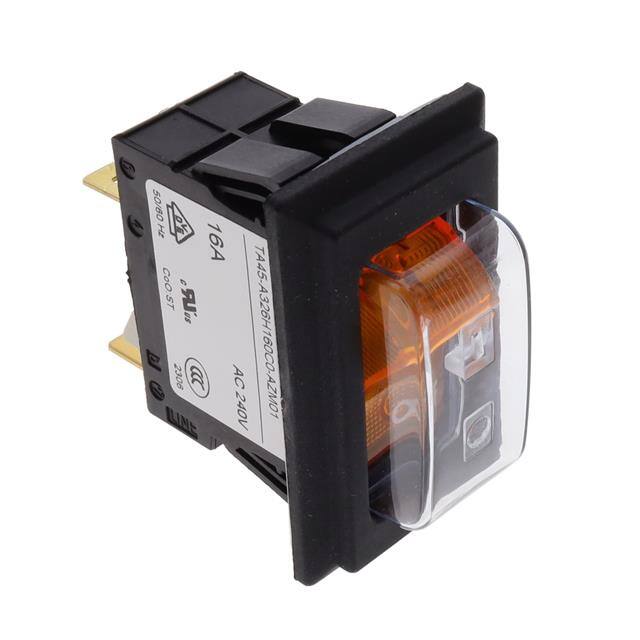

The Schurter Inc. 4430.071 is a thermal circuit breaker designed for reliable overload protection in various applications. This 2-pole unit offers a rated current of 16A and can handle AC voltages up to 240V and DC voltages up to 60V.
Featuring a rocker actuation type, the 4430.071 is suitable for panel mount installations. Its thermal tripping mechanism ensures positive trip-free release. The circuit breaker is built to withstand demanding environments, with a mechanical lifetime of 50,000 switching cycles and specified vibration and shock resistance.
Key electrical specifications include a conditional short circuit capacity of 1 kA at 240VAC and various Icn ratings depending on current and voltage conditions. The operating temperature range is -10°C to 55°C.
Approvals include CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077, indicating compliance with relevant safety standards for industrial equipment.
The rated AC voltage is 240 VAC.
The rated DC voltage is 60 VDC.
The rated current range is 0.05 A to 20 A.
The allowable operating temperature is -10°C to 55°C.
It has 2 poles.
It uses rocker actuation.
