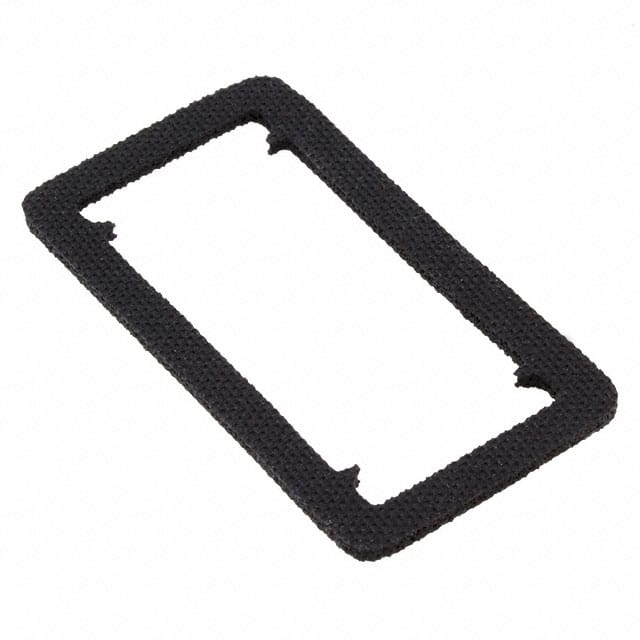

This Schurter Inc. 4430.0685 is a gasket accessory specifically designed for the TA45 series of circuit breakers. It provides thermal overload protection and features a rocker actuation type.
The circuit breaker operates with a rated voltage of 240 VAC and 60 VDC, with a rated current range of 0.05 to 20 A AC. It offers a conditional short circuit capacity of 1 kA at 240 VAC. The device has a mechanical lifetime of 50,000 switching cycles and an overload rating of a minimum of 40 trips at 6 times the rated current for AC.
Environmental specifications include a degree of protection of IP40 on the front side, which can be increased to IP54 with a factory-mounted protection cover. The operating temperature range is -10 °C to 55 °C, and storage temperature is also -10 °C to 55 °C. Vibration resistance is tested to IEC 60068-2-6, with shock resistance tested to IEC 60068-2-27.
This accessory is suitable for applications requiring reliable circuit protection in industrial environments, power tools, industrial appliances, power supplies, construction equipment, and cleaning equipment.
The rated voltage is 240 VAC and 60 VDC.
The allowable operation temperature is -10 to 55 °C.
The mechanical lifetime is 50,000 switching cycles.
The degree of protection on the front side is IP40.
It uses rocker actuation.
The rated current range for AC is 0.05 to 20 A.
