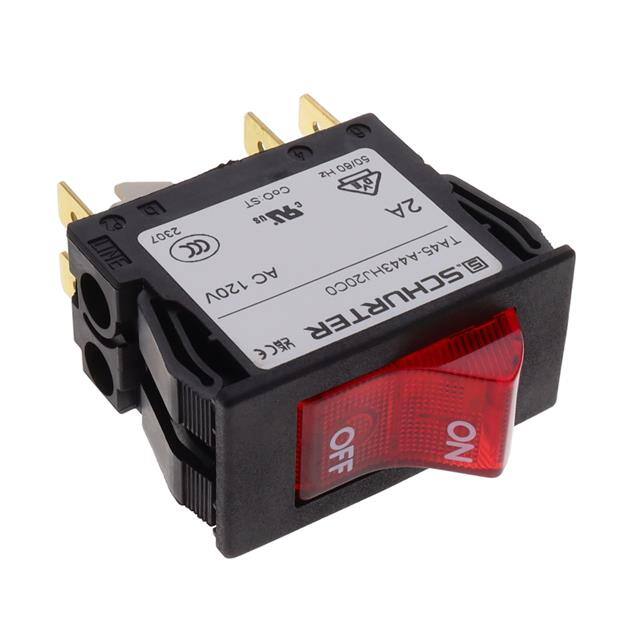

The Schurter Inc. 4430.0682 is a thermal circuit breaker featuring a 2-pole configuration and rocker actuation. It is designed for panel mounting and provides a rated current of 2A with a voltage rating of 240 VAC and 60 VDC.
This circuit breaker offers a conditional short circuit capacity of 1 kA at 240 VAC and a short circuit capacity of 300A at 240 VAC. It has a degree of protection of IP40 on the front side, which can be increased to IP54 with a factory-mounted protection cover. The device boasts a dielectric strength of 4 kVAC and an insulation resistance greater than 100 MΩ at 500 VDC.
With a mechanical lifetime of 50,000 switching cycles, the 4430.0682 is built for durability. It operates within a temperature range of -10 °C to 55 °C. Approvals include CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077.
Applications for this thermal circuit breaker include power tools, industrial appliances, power supplies, equipment for construction, and cleaning equipment. It features a red illuminated rocker with a nominal illumination voltage of 110V.
The rated voltage is 240 VAC and 60 VDC.
The current rating is 2 A.
It uses a rocker actuator.
The allowable operating temperature range is -10°C to 55°C.
The degree of protection is IP40, and IP54 with a factory-mounted protection cover.
It has 2 poles.
It is approved to CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077.
