| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating | |
| Weight |

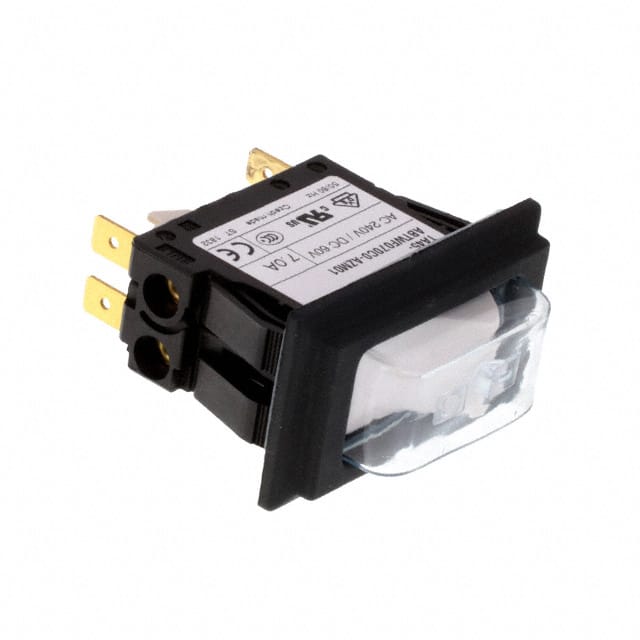

The Schurter Inc. 4430.0015 is a thermal circuit breaker designed for reliable overload protection. This 2-pole unit offers a rated current of 7A and a maximum AC voltage rating of 240 VAC, with a DC rating of 60 VDC.
Featuring a thermal tripping mechanism and rocker actuation, this circuit breaker is suitable for panel mounting. It provides a conditional short circuit capacity of 1 kA at 240 VAC and a short circuit capacity (Icn) of up to 300A. The device operates within an ambient temperature range of -10 °C to 55 °C and has a mechanical lifetime of 50,000 switching cycles.
Applications for this circuit breaker include power tools, industrial appliances, power supplies, and equipment for construction and cleaning. Its robust design ensures dependable performance in demanding environments.
240VAC and 60VDC.
-10°C to 55°C.
Thermal tripping.
IP40, or IP54 with a factory-mounted cover.
50,000 switching cycles.
Panel mount.
