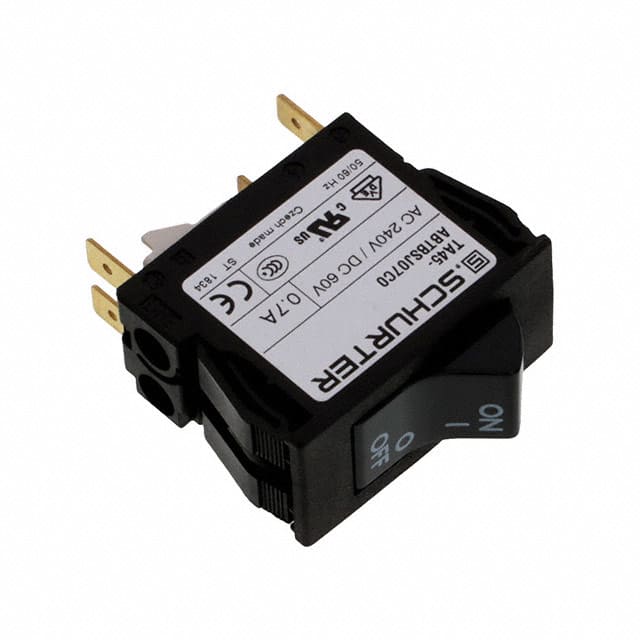

The Schurter Inc. 4430.0005 is a thermal circuit breaker from the TA45 series, designed for reliable overload protection. This 2-pole device features a rocker actuation type and is suitable for panel mounting.
Key electrical specifications include a rated voltage of 240 VAC and 60 VDC, with a current rating range of 0.05 to 20 A. The breaker offers a conditional short circuit capacity of 1 kA at 240 VAC and various Icn ratings depending on the current and voltage conditions.
Environmental and mechanical data include a degree of protection of IP40 on the front side, a dielectric strength of 4 kVAC, and an insulation resistance greater than 100 MΩ at 500 VDC. The operating temperature range is -10 °C to 55 °C. Mechanical lifetime is rated at 50,000 switching cycles.
Applications for this circuit breaker include power tools, industrial appliances, power supplies, and equipment for construction and cleaning.
The operating voltage is 240VAC and 60VDC.
The allowable operating temperature range is -10°C to 55°C.
The current rating is 700mA.
It uses a rocker actuator.
It is panel mounted.
The front side is IP40; with a factory-mounted protection cover it is IP54.
