| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
650 pcs
|
650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
650 pcs
|
650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

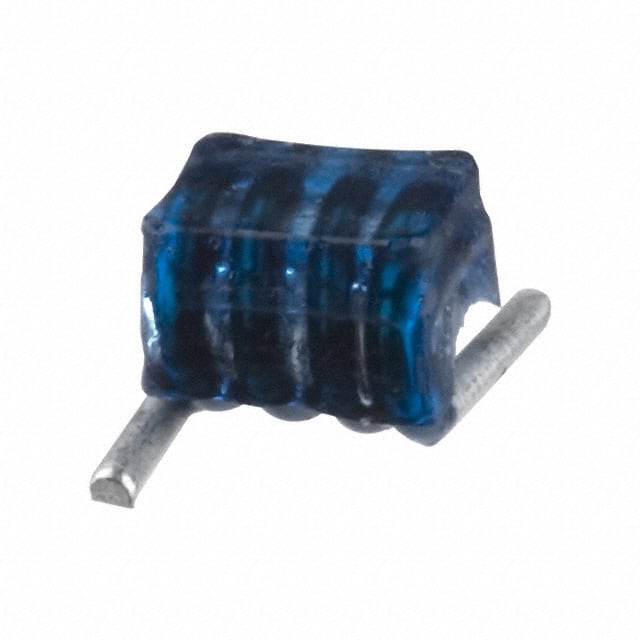

API Delevan 4426-5 is a fixed inductor with a nominal inductance of 18.5 nH and a tolerance of ±5%. It is rated for a continuous current of 3 A. The inductor features a wirewound construction with an air core, providing a high Q factor of 132 at 150 MHz and a self-resonant frequency of 3 GHz. The component is unshielded and designed for surface mount applications.
The inductor is housed in a Nonstandard package with dimensions of 3.68 mm length, 3.05 mm width, and 3.18 mm height. It operates over a temperature range of -55°C to 125°C, making it suitable for a wide variety of environments. The wirewound air core design is ideal for high-frequency RF circuits where low losses and high Q are required.
Typical applications include RF signal filtering, impedance matching, and resonant circuits. The part is available with multiple distributor cross-reference numbers including DN4005TR-ND, DN4005CT-ND, and DN4005DKR-ND from DigiKey.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.35 | $1.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
18.5 nH.
3 A.
3 GHz.
132 at 150 MHz.
±5%.
-55°C to 125°C.
Surface Mount.
