| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bearing Type | |
| Fan Type | |
| Features | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| Termination | |
| Voltage | |
| Weight | |
| Width |

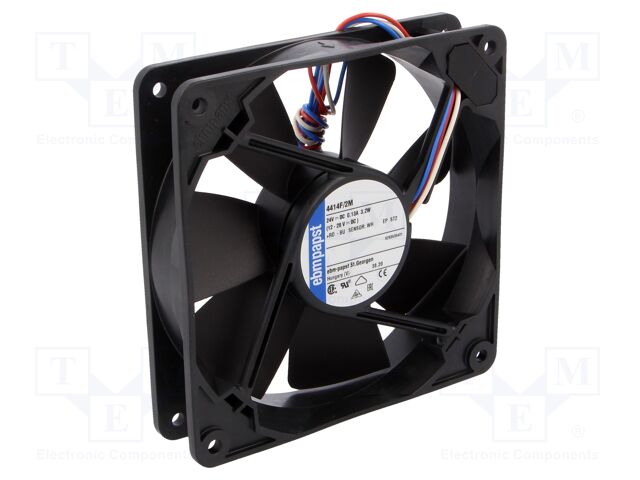

The Ebm-Papst 4414F/2M is a 24VDC tubeaxial fan designed for efficient forced-air cooling in electronic enclosures and equipment. It features a square 119mm x 119mm frame with a 25.4mm thickness, making it suitable for standard 120mm fan mounting patterns.
The fan uses a ball bearing system for long operational life and reliability. At its rated voltage of 24VDC, it consumes 3.1W and operates at 2400 RPM. The noise level is rated at 55.0 dB(A). Electrical connection is via three wire leads, including a tachometer (speed sensor) output for real-time speed monitoring. The fan also includes locked rotor protection.
The 4414F/2M operates over a temperature range of -20°C to 75°C. It is intended for use in applications requiring reliable airflow and speed feedback, such as telecommunications equipment, industrial controls, and server cooling.
| Qty | Low | High |
|---|---|---|
| 1+ | $40.71 | $40.71 |
| 10+ | $39.14 | $39.14 |
| 25+ | $37.50 | $37.50 |
| 36+ | $37.24 | $37.24 |
| 108+ | $35.70 | $35.70 |
| 252+ | $31.28 | $31.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 24VDC.
The frame size is 119mm x 119mm with a thickness of 25.4mm.
Yes, it includes a speed sensor (tachometer) output on a third wire.
The operating temperature range is -20°C to 75°C.
The noise level is 55.0 dB(A).
It uses a ball bearing system.
It is listed as RoHS3 compliant, but this is unverified low-confidence data.
