| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Package Quantity | |
| Voltage Rating |

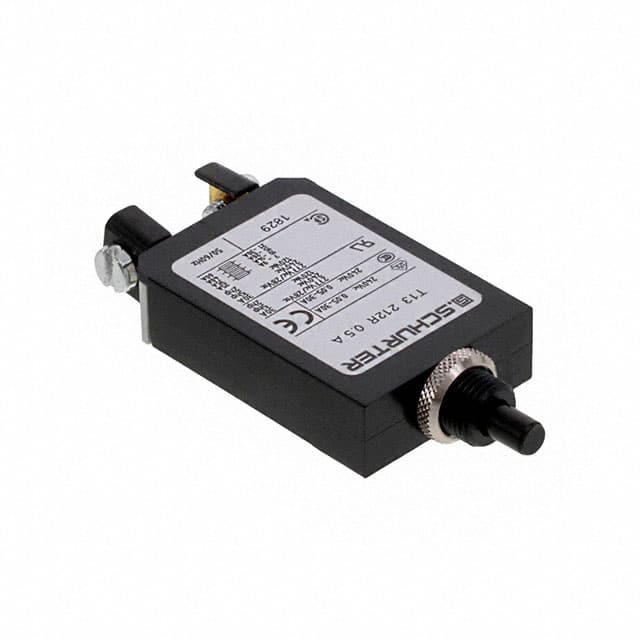

The Schurter Inc. 4411.0233 is a thermal circuit breaker designed for equipment protection. It features a 1-pole configuration, a push-to-reset actuator, and screw terminals.
Key electrical specifications include a rated voltage of 240/277 VAC and 28 VDC, with a rated current range of 0.05 to 30 A. The breaker offers a short circuit capacity of up to 1 kA under specific conditions. It has an endurance rating of typically 3000 switching cycles at 2x Ir.
This circuit breaker operates within a temperature range of -5 °C to 60 °C and provides an IP40 degree of protection on the front side. It is designed for applications such as power supplies, uninterruptible power supplies, power tools, and household appliances.
The unit is panel mountable and comes in a package quantity of 20 pieces, supplied in Rail/Tube packaging.
The rated voltage is 240/277 VAC and 28 VDC.
The allowable operating temperature range is -5 °C to 60 °C.
The tripping type is thermal.
The mounting type is panel mount.
The conditional short circuit capacity (Inc) is 1 kA at AC 240 V per IEC 60934 PC1.
The front side has an IP40 degree of protection according to IEC 60529.
