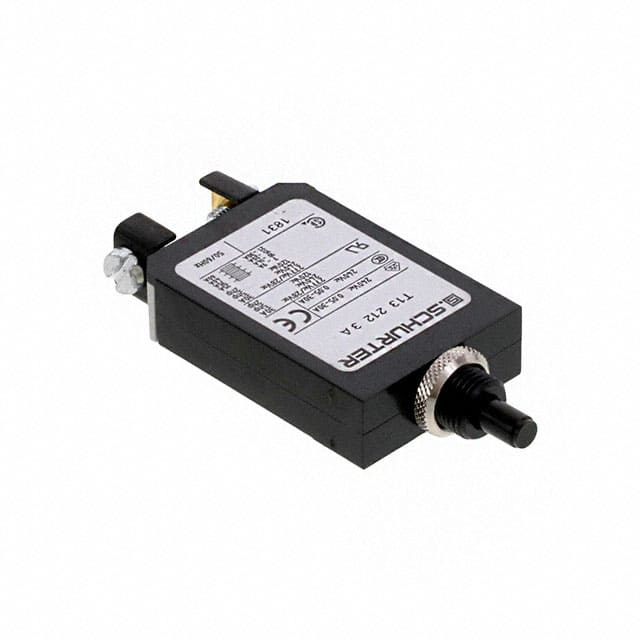

4411.0214 The Schurter Inc. 4411.0214 is a 1-pole thermal circuit breaker with a panel mount design. It is rated for 277 VAC and 3A.
Mfr Part #:

4411.0214

Mfr Name: Schurter Inc.
Schurter Inc.
The Schurter Inc. 4411.0214 is a 1-pole thermal circuit breaker with a panel mount design. It is rated for 277 VAC and 3A.
Stock on Request

4411.0214 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating (Amps)
Insulation Resistance
Mounting Type
Number of Poles
Voltage Rating
Weight
View Similar Products (0)

4411.0214 Description

Short technical summary and product information.

The Schurter Inc. 4411.0214 is a thermal circuit breaker designed for equipment protection. It features a threaded neck type and a push-to-reset actuation.



This 1-pole breaker has a rated AC voltage of 277 VAC and a rated DC voltage of 28 VDC. The rated current range is from 0.05A to 30A, with a specific rating of 3A for this model. It offers a conditional short circuit capacity of 1 kA and an Icn short circuit capacity of 400A.



Designed for panel mounting, the 4411.0214 operates within a temperature range of -5°C to 60°C. Its compact design and positively trip-free release make it suitable for various applications including power supplies, uninterruptible power supplies, power tools, and household appliances.

4411.0214 Quick Information

Product Type: Circuit Breaker
Canonical Name: Schurter Inc. 4411.0214 Thermal Circuit Breaker

4411.0214 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

4411.0214 Features

  • Thermal circuit breaker design.
  • Rated for 277 VAC.
  • 3A current rating.
  • 1-pole configuration.
  • Panel mount type.

4411.0214 Applications

  • Suitable for power supplies.
  • Used in uninterruptible power supplies.
  • Applicable for power tools.
  • Designed for household appliances.

4411.0214 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the Schurter 4411.0214?

277VAC and 28VDC.

What is the operating temperature range of the 4411.0214?

-5°C to 60°C.

What is the mounting type of the 4411.0214?

Panel mount.

What is the tripping type of the Schurter 4411.0214?

Thermal.

What is the current rating of the 4411.0214?

3A.

What is the short circuit capacity of the 4411.0214?

400A at 240VAC and 28VDC, conditional 1kA at 240VAC.

What is the dielectric strength of the 4411.0214?

1.5kV at 50Hz, impulse dielectric >2.5kV.

4411.0214 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
4411.0052
4411.0052
Schurter Inc.
The Schurter Inc. 4411.0052 is a 1-pole thermal circuit breaker designed for panel mounting. It features a 277V AC voltage rating and a 3A current rating.
