| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating | |
| Weight |

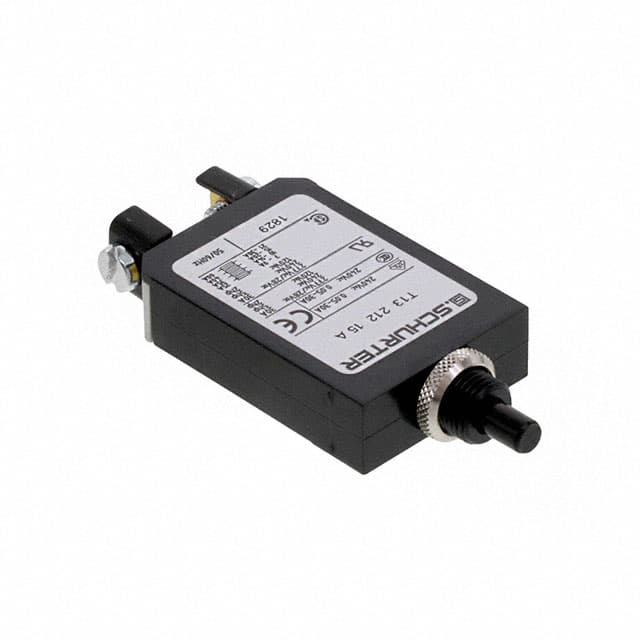

The Schurter Inc. 4411.0043 is a thermal circuit breaker designed for equipment protection. It operates as a 1-pole device with a rated current of 15A and a voltage rating of 277 VAC or 28 VDC.
Key electrical specifications include a high breaking capacity and a rated current range from 0.05 to 30A. The breaker offers a conditional short circuit capacity of 1 kA and an Icn of up to 400A. It is designed for a wide operating temperature range of -5°C to 60°C.
This circuit breaker features a panel mount design and a push-to-reset actuator. Its compact construction and positively trip-free release make it suitable for various applications, including power supplies, uninterruptible power supplies, power tools, and household appliances.
The rated voltage is 277 VAC and 28 VDC.
The allowable operating temperature range is -5°C to 60°C.
It uses a push-to-reset actuator.
The front side is rated IP40 according to IEC 60529.
The conditional short circuit capacity is 1 kA at 240 VAC per IEC 60934 PC1.
