| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating | |
| Weight |

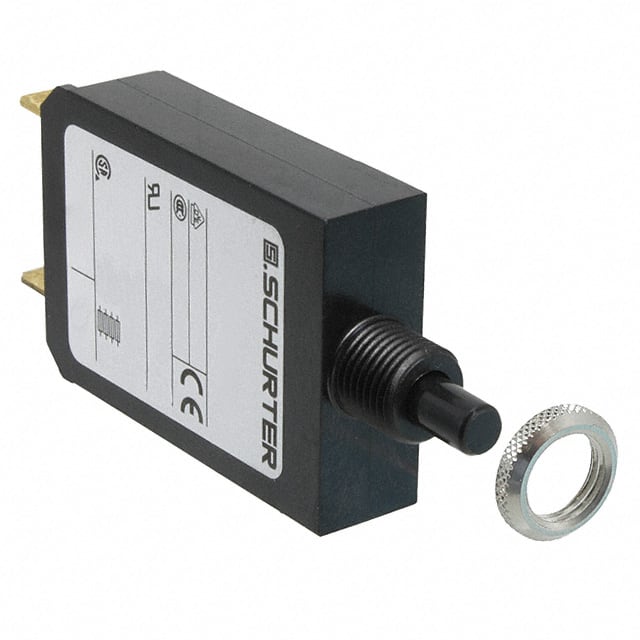

The Schurter Inc. 4411.0011 is a 1-pole thermal circuit breaker with a threaded neck type and push-to-reset actuation. It is designed for panel mounting and offers a current rating range of 0.05 to 30A, with this specific model rated at 10A.
This circuit breaker operates with a rated voltage of 277 VAC and 28 VDC. It boasts a high breaking capacity and a compact design, making it suitable for various applications. The device features positively trip-free release and is available with a cover, offering different mounting possibilities.
Key technical specifications include a conditional short circuit capacity of 1 kA (IEC 60934: PC1) and a short circuit capacity (Icn) of 8 x In for currents below 7A and 400A for currents 7A and above at 240 VAC. It also supports 400A at 28 VDC. The operating temperature range is -5 °C to 60 °C.
Applications for this circuit breaker include power supplies, uninterruptible power supplies, power tools, and household appliances. It meets IEC 60934 standards and has approvals from VDE, UL, CSA, and CCC.
The breaker is rated for 277 VAC and 28 VDC.
Panel mount.
-5 °C to 60 °C.
10 A.
Thermal.
1 pole.
Push to Reset.
